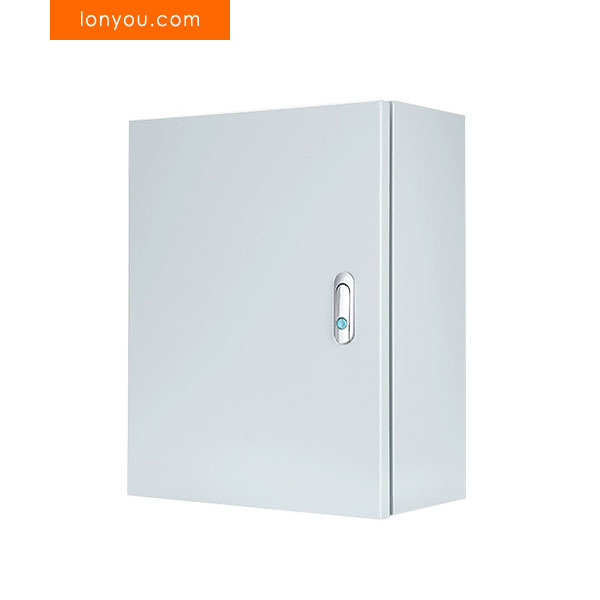

Water-proof Metal Electrical Enclosures
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 EA/Month

Description
Reviews
Water-proof Metal Electrical Enclosures are engineered to provide robust and reliable protection for electrical and electronic components in environments where exposure to water and moisture is a concern. Constructed from durable metals such as steel or stainless steel, and featuring specialized water-tight seals and design elements, these enclosures safeguard internal equipment from rain, splashing water, hose-directed water, and even temporary submersion in some cases. Ideal for outdoor installations, wash-down areas, marine environments, and industrial settings where water ingress poses a risk to the functionality and safety of electrical systems.
Features
- Constructed from sturdy metal materials like steel (often powder-coated for added protection) or various grades of stainless steel (e.g., 304, 316) for durability and corrosion resistance.
- Equipped with high-quality, continuous gaskets and seals around doors and access points to prevent water and dust ingress.
- Designed with features like drip shields, sloped tops (in some models), and sealed cable entry points to channel water away from the enclosure.
- Offers protection against a range of water exposure levels, often indicated by Ingress Protection (IP) ratings.
- Available in a variety of sizes, configurations (wall-mount, floor-mount, etc.), and door styles (hinged, lift-off).
- Features robust latching mechanisms and often includes provisions for padlocks or other security measures.

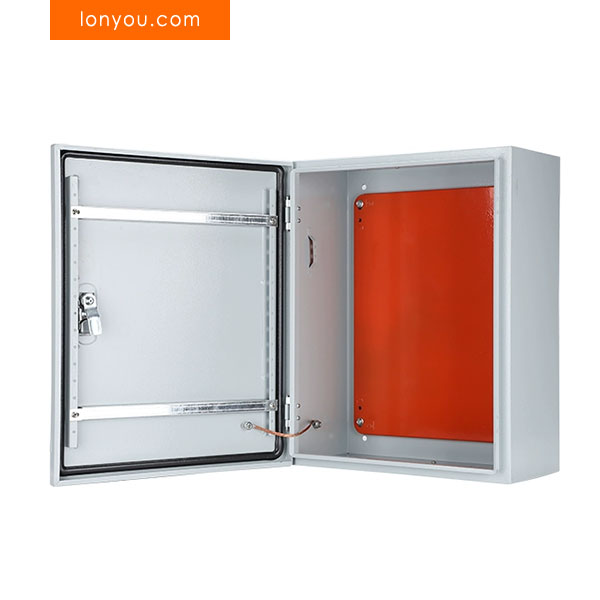

- May include internal mounting panels or rails for easy installation of electrical components.
- Can be used in both indoor and outdoor applications where water or moisture is present.
- Provides shielding against electromagnetic interference (EMI) and radio frequency interference (RFI) in some designs.
- Offers a secure and protected housing for sensitive electrical and electronic equipment.
Technical Data
- Material: Steel (Powder-Coated), Stainless Steel (SS304, SS316)
- IP Rating: Typically ranges from IP65 to IP67 (indicating protection against dust and water jets or temporary immersion; higher ratings like IP68 may be available for submersion).
- NEMA Rating (if applicable): Corresponds to the IP rating and provides additional protection details.
- External Dimensions (HxWxD): Varies widely based on model (e.g., 400x300x200 mm, 800x600x300 mm).
- Internal Dimensions (HxWxD): Varies based on model.
- Weight: Dependent on size and material.
- Operating Temperature Range: Typically -20°C to +70°C (specific range depends on seals and materials).
- Gasket Material: Neoprene, Silicone, EPDM, or Polyurethane.
- Door Style: Hinged with latches, Lift-off.
- Locking Mechanism: Quarter-turn latches, Padlockable hasps, Keyed locks.

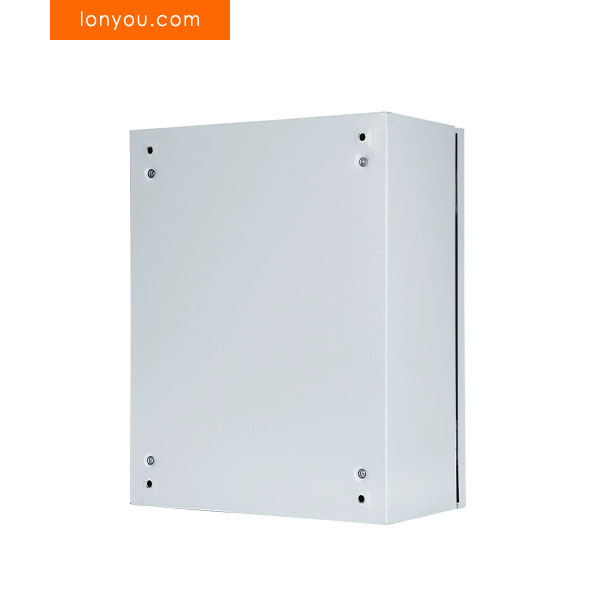

- Mounting Options: Wall-mount brackets, Floor-standing legs, Pole-mount kits.

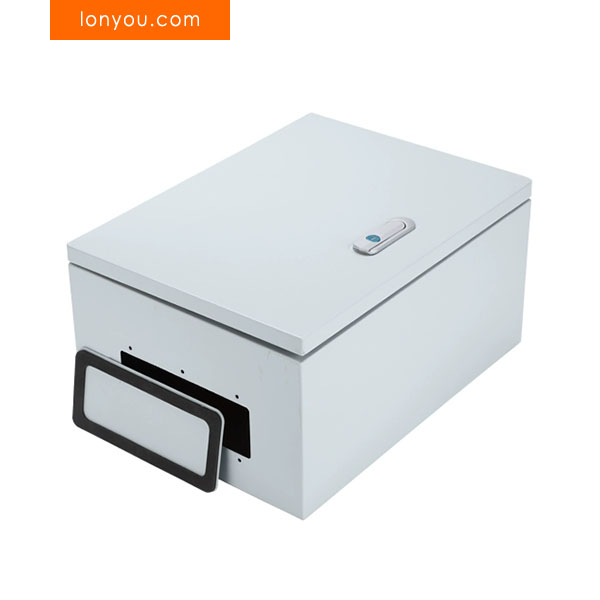

- Cable Entry: Gland plates, Knockouts (with appropriate water-tight glands required for water-proof integrity).
- Finish (for steel): Powder-coated in standard colors (e.g., RAL 7035).
- Grounding Provisions: Includes internal or external grounding studs.
Specifications
Item No. |
Height (mm) |
Width (mm) |
Depth (mm) |
LYT202010 | 200 | 200 | 100 |
LYT252015 | 250 | 200 | 150 |
LYT302015 | 300 | 200 | 150 |
LYT302520 | 300 | 250 | 200 |
LYT403020 | 400 | 300 | 200 |
LYT503020 | 500 | 300 | 200 |
LYT503030 | 500 | 300 | 300 |
LYT504020 | 500 | 400 | 200 |
LYT505025 | 500 | 500 | 250 |
LYT604020 | 600 | 400 | 200 |
LYT604025 | 600 | 400 | 250 |
LYT605020 | 600 | 500 | 200 |
LYT605025 | 600 | 500 | 250 |
LYT705020 | 700 | 500 | 200 |
LYT705025 | 700 | 500 | 250 |
LYT806025 | 800 | 600 | 250 |
LYT806030 | 800 | 600 | 300 |
LYT1006030 | 1000 | 600 | 300 |
LYT1008030 | 1000 | 800 | 300 |
LYT12010030 | 1200 | 1000 | 300 |
LYT12010040 | 1200 | 1000 | 400 |
Please contactd sales for customizing any other sizes.
