Weatherproof, Space-Saving & Corrosion Resistant
Made of SS304 & 316 Stainless Steel
Min. Order: 50 EA
Reference FOB Price: 25.0~100.0 USD/EA
Basic Info & Terms

Place of Origin:  China

Brand Name:  LONYOU

Payment Terms: T/T, L/C

Certification:   CE RoHS

Supply Ability: 100,000 EA/Month

Description

Reviews

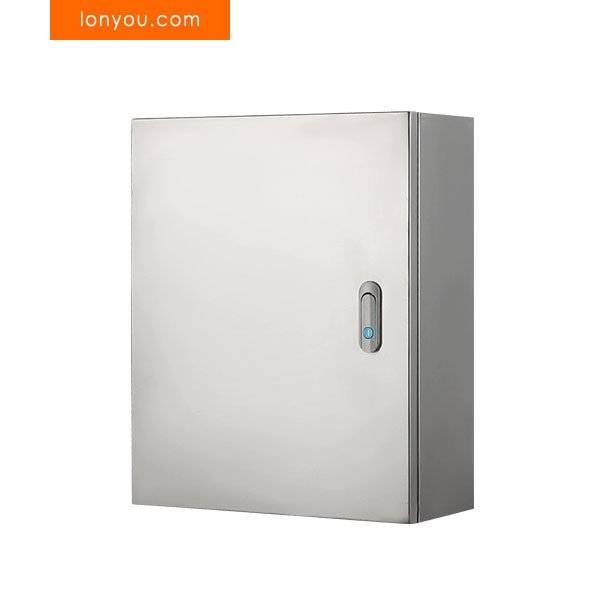

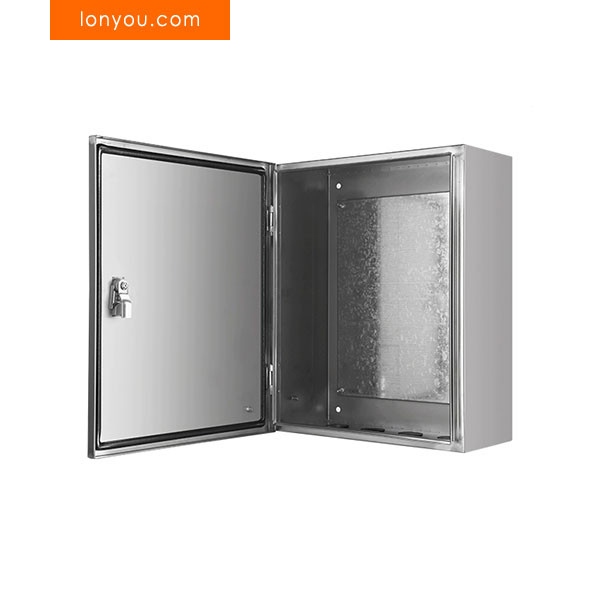

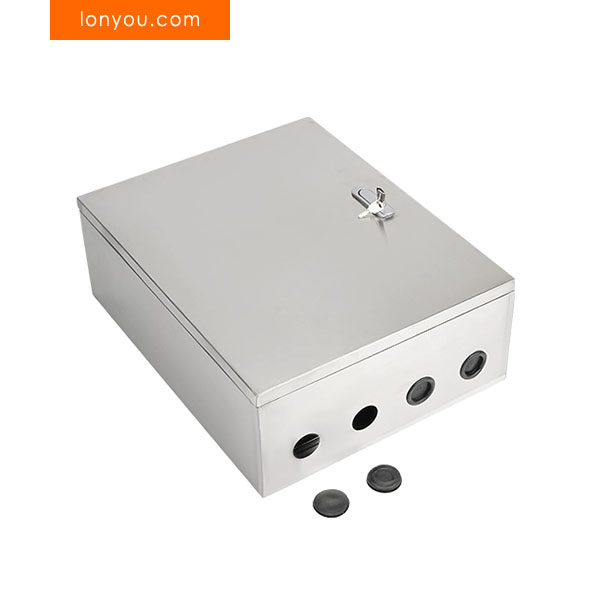

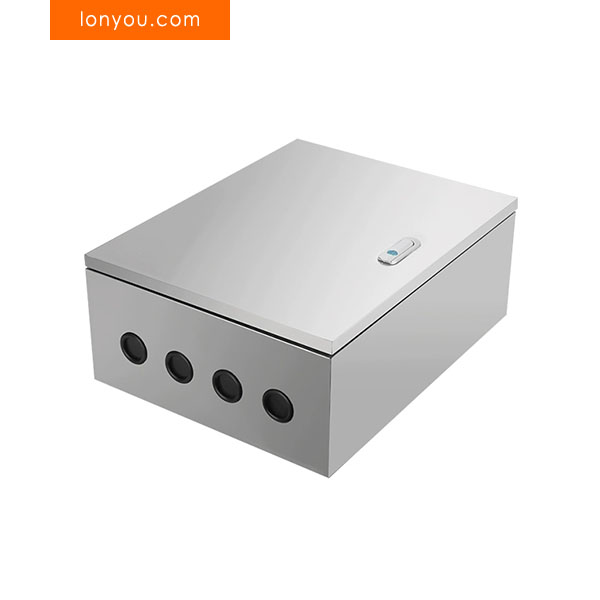

Wall Mounting Electrical Enclosures are designed to provide robust protection and secure housing for electrical and electronic components in a variety of indoor and outdoor applications. Constructed from durable materials such as steel, stainless steel, or polycarbonate, these enclosures offer reliable defense against dust, water ingress, impacts, and other environmental factors. Their design facilitates easy installation on walls or vertical surfaces, making them a versatile solution for industrial, commercial, and residential electrical systems. Available in a range of sizes and configurations, our wall mounting enclosures ensure the safety and longevity of your valuable electrical equipment.

Features

  • Designed for easy and secure wall or surface mounting.
  • Constructed from durable materials like steel, stainless steel (various grades), or polycarbonate.
  • Offers protection against dust, dirt, and water ingress (various IP ratings available).
  • Provides impact resistance (various IK ratings available).
  • Available with hinged doors, removable covers, or screw-on lids for easy access.
  • Features grounding studs and internal mounting provisions for components.
  • Offers options for cable entry glands and knockouts.
  • Some models include features like ventilation or thermal management options.
  • Available in various sizes and depths to accommodate different equipment.
  • Suitable for both indoor and outdoor installations, depending on the material and IP rating.
  • May include locking mechanisms for enhanced security.

Technical Data

  • Material Options: Mild Steel (Powder Coated), Stainless Steel (SS304, SS316), Polycarbonate
  • Ingress Protection (IP Rating): Typically ranges from IP44 to IP66 (or higher)
  • Impact Resistance (IK Rating): Typically ranges from IK08 to IK10
  • Standard Sizes (Height x Width x Depth - Examples in mm): 200x300x150, 300x400x200, 400x600x250 (and many other custom and standard sizes)
  • Door/Cover Type: Hinged with latch, Removable screw-on cover
  • Locking Options: Quarter-turn latch, Key lock, Padlock provision
  • Mounting Provisions: Internal mounting plates, DIN rail mounting options
  • Cable Entry: Knockouts (various sizes), Provision for cable glands
  • Temperature Range: Typically -20°C to +80°C (specific range depends on material)
  • Finish (Steel): Powder coated (various colors, e.g., RAL 7035 Grey)
  • Certifications : CE, NEMA ratings

Specifications

Item No.
Height
(mm)
Width
(mm)
Depth
(mm)
LYB202010 200 200 100
LYB252015 250 200 150
LYB302015 300 200 150
LYB302520 300 250 200
LYB403020 400 300 200
LYB503020 500 300 200
LYB503030 500 300 300
LYB504020 500 400 200
LYB505025 500 500 250
LYB604020 600 400 200
LYB604025 600 400 250
LYB605020 600 500 200
LYB605025 600 500 250
LYB705020 700 500 200
LYB705025 700 500 250
LYB806025 800 600 250
LYB806030 800 600 300
LYB1006030 1000 600 300
LYB1008030 1000 800 300
LYB12010030 1200 1000 300
LYB12010040 1200 1000 400

Please contact sales for customizing any other sizes.
