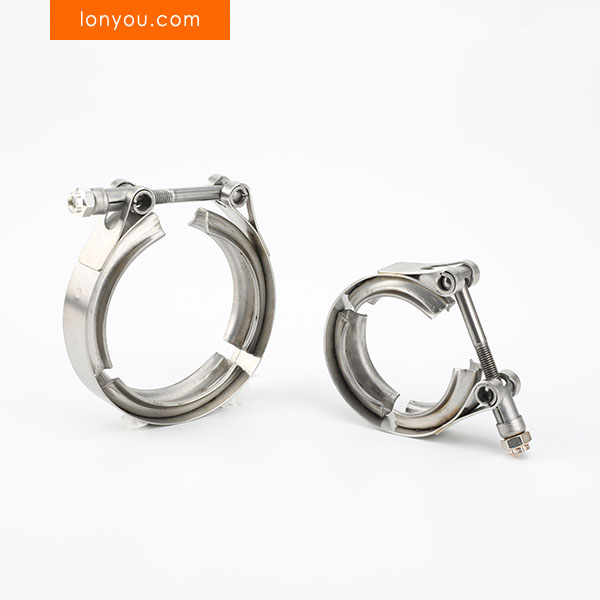

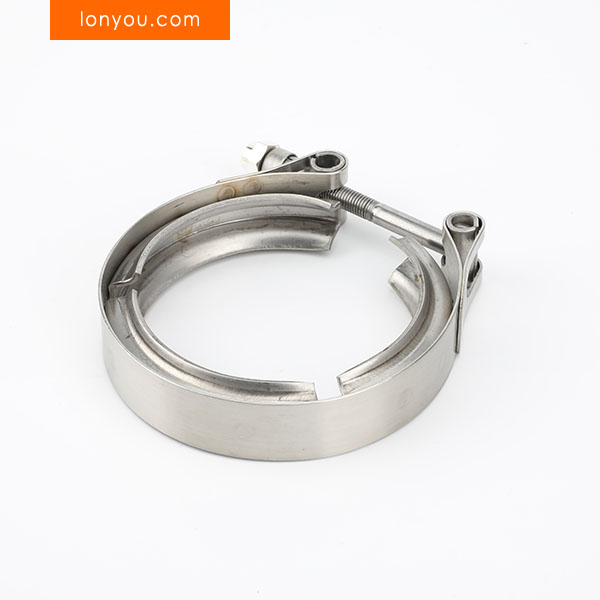

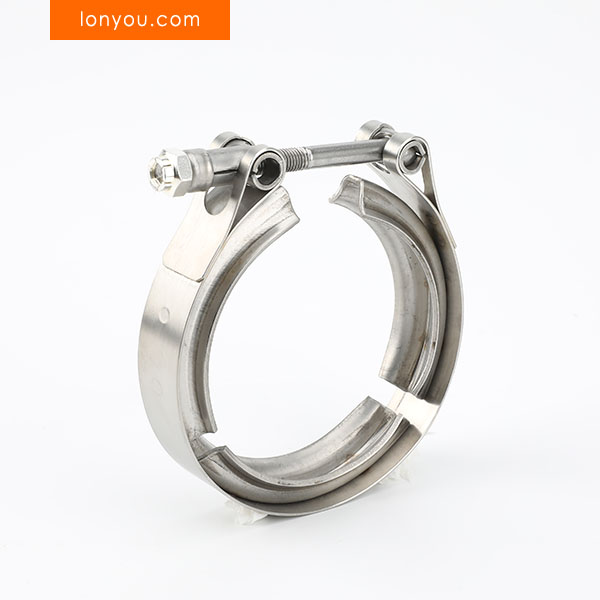

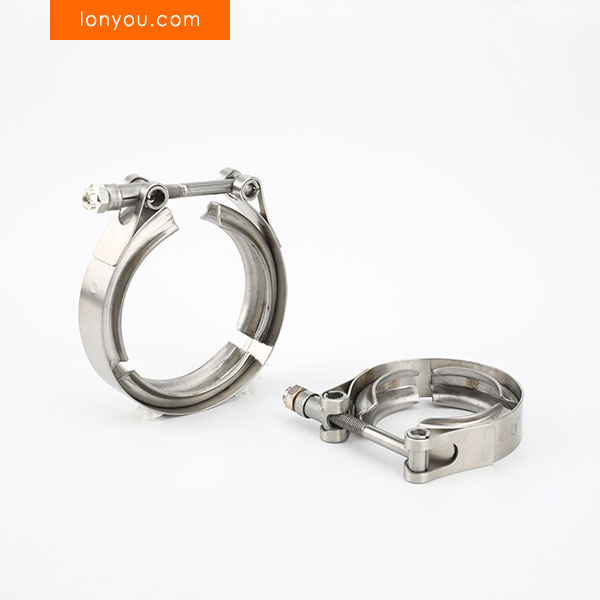

V Band Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews
V Band Hose Clamps offer a robust and leak-proof sealing solution for connecting hoses, pipes, and tubing in a wide range of applications. Their unique design utilizes a V-shaped retainer band and two interlocking flanges to create a tight and even clamping force around the connection. This design provides superior sealing compared to traditional hose clamps, especially in high-pressure, high-temperature, and vibration-prone environments. V Band Hose Clamps are commonly used in automotive exhaust systems, turbocharger connections, industrial machinery, and fluid transfer applications where a reliable and easily disconnectable joint is required.
Features
- Provides a secure and leak-proof seal for hose and pipe connections.
- Offers a uniform clamping force around the entire circumference of the joint.
- Ideal for high-pressure and high-temperature applications.
- Excellent resistance to vibration and movement.
- Allows for quick and easy installation and removal, simplifying maintenance and assembly.
- Constructed from durable materials such as stainless steel for corrosion resistance.
- Available in various sizes to accommodate different hose and pipe diameters.
- Offers a clean and professional appearance.
- Can be used for connecting rigid or flexible hoses and pipes.
- Provides a stronger and more reliable seal compared to traditional worm gear clamps in demanding applications.
Technical Data
- Material Options (Band & Flanges): Typically Stainless Steel (grades like 304, 316, 201), Carbon Steel (often with coatings)
- Band Width: Varies depending on the size and application (e.g., 1 inch, 1.5 inches)
- Clamp Diameter Range: Available for a wide range of hose and pipe outer diameters (e.g., 2 inches to 6 inches, and beyond)
- Maximum Working Pressure: Varies significantly based on the material, size, and design (can range from tens to hundreds of PSI)
- Maximum Operating Temperature: Dependent on the material used (e.g., Stainless Steel can typically handle higher temperatures than coated carbon steel)
- Fastener Type: Typically a T-bolt latch or a quick-release mechanism
- Fastener Material: Usually Stainless Steel or high-strength steel
- Torque Specification (for installation): Specified by the manufacturer to ensure proper sealing without over-tightening
- Corrosion Resistance: Excellent for stainless steel options; coated carbon steel offers moderate resistance
- Vibration Resistance: Generally very good due to the uniform clamping force
- Application Examples: Automotive exhaust, turbocharger systems, intake systems, filtration systems, industrial piping, sanitary connections
Specifications
Code |
Width (mm) |
Thickness (mm) |
Diameter (inch) |
Bolt Size (mm) |
Material |
VB020 | 19.0 | 1.0 | 2 | M6 | W1/W4 |
VB025 | 19.0 | 1.0 | 2.5 | M6 | W1/W4 |
VB030 | 19.0 | 1.0 | 3 | M6 | W1/W4 |
VB035 | 19.0 | 1.0 | 3.5 | M6 | W1/W4 |
VB040 | 19.0 | 1.0 | 4 | M6 | W1/W4 |
VB045 | 19.0 | 1.0 | 4.5 | M6 | W1/W4 |
VB050 | 19.0 | 1.0 | 5 | M6 | W1/W4 |
VB055 | 19.0 | 1.0 | 5.5 | M6 | W1/W4 |
VB060 | 19.0 | 1.0 | 6 | M6 | W1/W4 |
VB065 | 19.0 | 1.0 | 6.5 | M6 | W1/W4 |
VB070 | 19.0 | 1.0 | 7 | M6 | W1/W4 |
VB075 | 19.0 | 1.0 | 7.5 | M6 | W1/W4 |
VB080 | 19.0 | 1.0 | 8 | M6 | W1/W4 |
VB085 | 19.0 | 1.0 | 8.5 | M6 | W1/W4 |
VB090 | 19.0 | 1.0 | 9 | M6 | W1/W4 |
VB095 | 19.0 | 1.0 | 9.5 | M6 | W1/W4 |
VB100 | 19.0 | 1.0 | 10 | M6 | W1/W4 |
VB105 | 19.0 | 1.0 | 10.5 | M6 | W1/W4 |
VB110 | 25.0 | 1.0 | 11 | M8 | W1/W4 |
VB115 | 25.0 | 1.0 | 11.5 | M8 | W1/W4 |
VB120 | 25.0 | 1.0 | 12 | M8 | W1/W4 |
VB125 | 25.0 | 1.0 | 12.5 | M8 | W1/W4 |
VB130 | 25.0 | 1.0 | 13 | M8 | W1/W4 |
VB135 | 25.0 | 1.0 | 13.5 | M8 | W1/W4 |
VB140 | 25.0 | 1.0 | 14 | M8 | W1/W4 |
VB145 | 25.0 | 1.0 | 14.5 | M8 | W1/W4 |
VB150 | 25.0 | 1.0 | 15 | M8 | W1/W4 |
VB155 | 25.0 | 1.0 | 15.5 | M8 | W1/W4 |
VB160 | 25.0 | 1.0 | 16 | M8 | W1/W4 |
VB165 | 25.0 | 1.0 | 16.5 | M8 | W1/W4 |
VB170 | 25.0 | 1.0 | 17 | M8 | W1/W4 |
VB175 | 25.0 | 1.0 | 17.5 | M8 | W1/W4 |
VB180 | 25.0 | 1.0 | 18 | M8 | W1/W4 |
VB185 | 25.0 | 1.0 | 18.5 | M8 | W1/W4 |
VB190 | 25.0 | 1.0 | 19 | M8 | W1/W4 |
VB195 | 25.0 | 1.0 | 19.5 | M8 | W1/W4 |
VB200 | 25.0 | 1.0 | 20 | M8 | W1/W4 |
To customize any other sizes, please contact sales for further information.
