U Bolt Pipe Clamps
Designed for Simple Installation and Reliable Pipe Fastening
Corrosion Resistant, Rust-proof & Long-Lasting
Min. Order: 1,000 PCS
Reference FOB Price: 1.0~5.0 USD/PCS
Basic Info & Terms
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Products
Contact Now
Description
Reviews

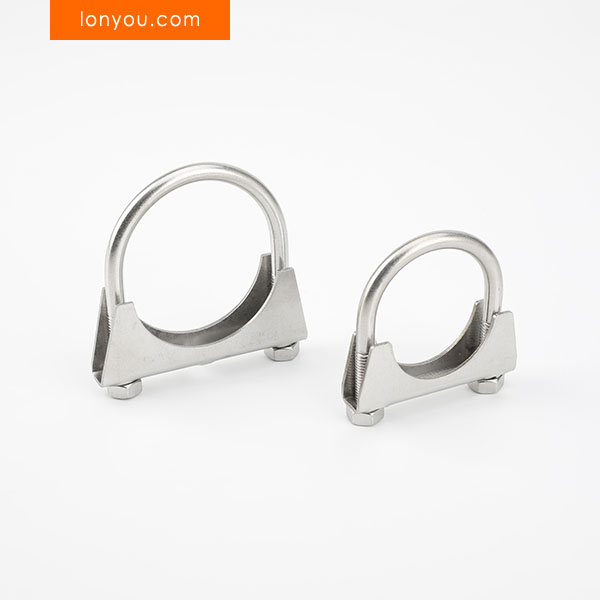

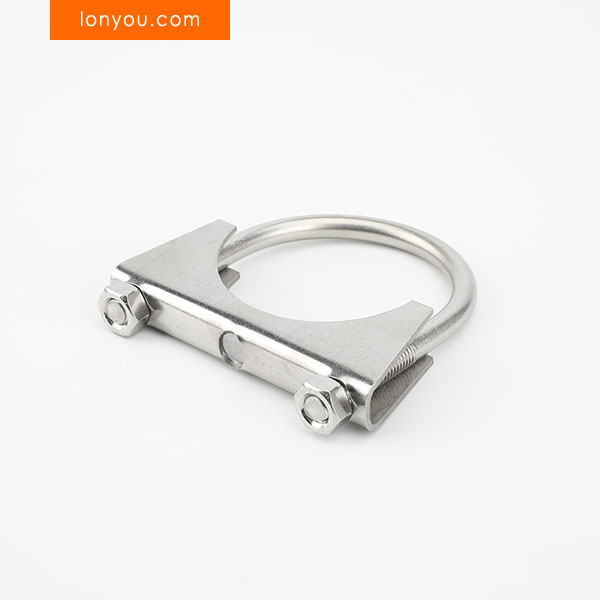

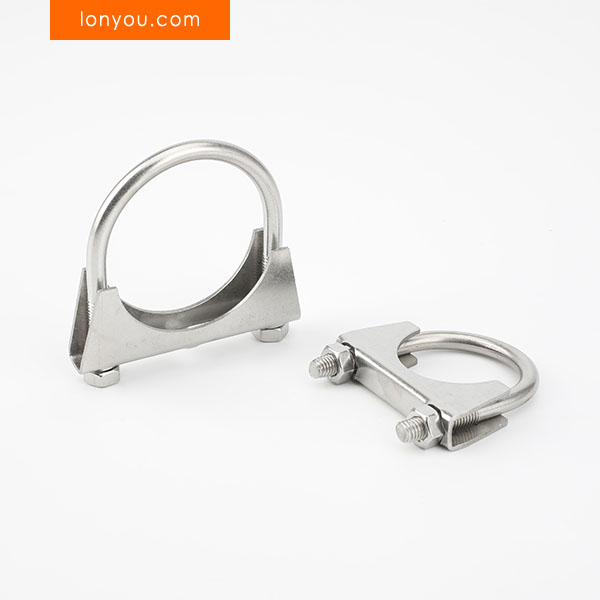

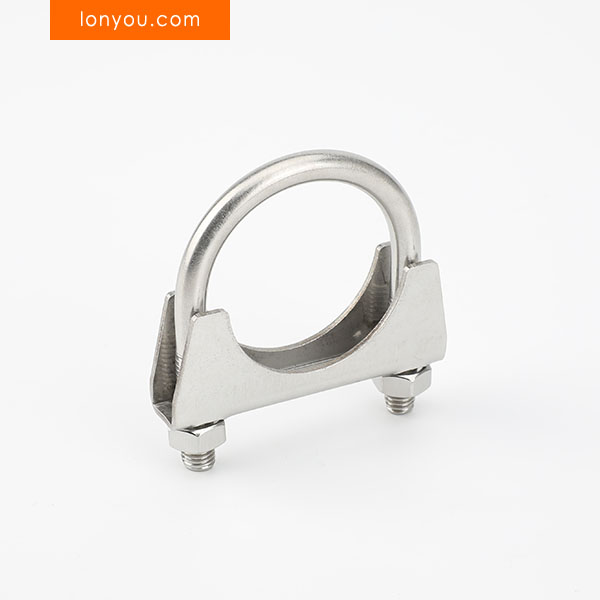

U Bolt Pipe Clamps provide a robust and versatile solution for securing pipes, tubes, and conduits to various surfaces or structural supports. Characterized by their U-shaped bolt design and a saddle or plate, these clamps offer a strong and reliable method for fastening pipes in plumbing, HVAC, electrical, and industrial applications. They effectively resist movement, vibration, and stress, ensuring the stability and safety of piping systems.
Features
- Consists of a U-shaped bolt, a saddle or plate, and typically two nuts.
- Designed to securely fasten pipes, tubes, or conduits.
- Available in various materials, including carbon steel, stainless steel (various grades), and galvanized steel, offering different levels of corrosion resistance.
- Offered in a wide range of sizes to accommodate various pipe diameters and standards (e.g., nominal pipe size - NPS).
- Provides a strong and stable support for piping systems.
- Easy to install using standard wrenches.
- Can be used for both temporary and permanent installations.
- Suitable for indoor and outdoor applications, with material selection depending on the environment.
- Helps to reduce vibration and noise in piping systems.
- Can be used to support single or multiple pipes depending on the configuration.
Technical Data
- Material Options: Carbon Steel (zinc plated, galvanized), Stainless Steel (SS304, SS316), Alloy Steel
- Pipe Size Range (Nominal Pipe Size - NPS): Typically from 1/2" to 24" and beyond
- Bolt Diameter: Varies depending on the pipe size and load requirements (e.g., M6, M8, M10, M12)
- Distance Between Legs (Inside Width): Corresponds to the outer diameter of the pipe being clamped
- Leg Length (Thread Length): Varies to accommodate different mounting surface thicknesses and nut engagement
- Saddle/Plate Dimensions: Length and width vary to provide adequate support and load distribution
- Thread Type: Typically Metric (ISO) or Imperial (UNC, UNF)
- Finish Options: Zinc plated, hot-dip galvanized, polished stainless steel
- Maximum Load Capacity: Dependent on the material, bolt diameter, and pipe size (refer to specific product specifications)
- Operating Temperature Range: Dependent on the material of construction (e.g., Stainless Steel offers a wider range than some carbon steel options)
- Corrosion Resistance: Carbon Steel (zinc plated/galvanized): Offers moderate corrosion resistance; Stainless Steel: Offers excellent corrosion resistance (grade dependent).
- Nut Type: Typically standard hex nuts; lock nuts or other types may be available
- Standards Compliance: May adhere to specific industry standards for pipe supports.
Specifications
Diameter (mm) |
Bolt Size (mm) |
Plate Thickness (mm) |
Height (mm) |
25 | M8 | 2.0 | 53 |
28 | M8 | 2.0 | 55 |
32 | M8 | 2.0 | 55 |
38 | M8 | 2.0 | 66 |
42 | M8 | 2.0 | 70 |
45 | M8 | 2.0 | 75 |
48 | M8 | 2.0 | 76 |
51 | M8 | 2.0 | 78 |
54 | M8 | 2.0 | 85 |
57 | M8 | 2.0 | 85 |
64 | M8 | 2.0 | 98 |
67 | M8 | 2.0 | 98 |
70 | M8 | 2.0 | 98 |
76 | M8 | 2.0 | 104 |
83 | M8 | 2.0 | 114 |
89 | M8 | 2.0 | 116 |
95 | M8 | 2.0 | 122 |
102 | M8 | 2.0 | 130 |
110 | M8 | 2.0 | 130 |
120 | M8 | 2.0 | 150 |
130 | M8 | 2.0 | 175 |
140 | M8 | 2.0 | 185 |
150 | M8 | 2.0 | 195 |
Please contact sales for customizing any other sizes.
