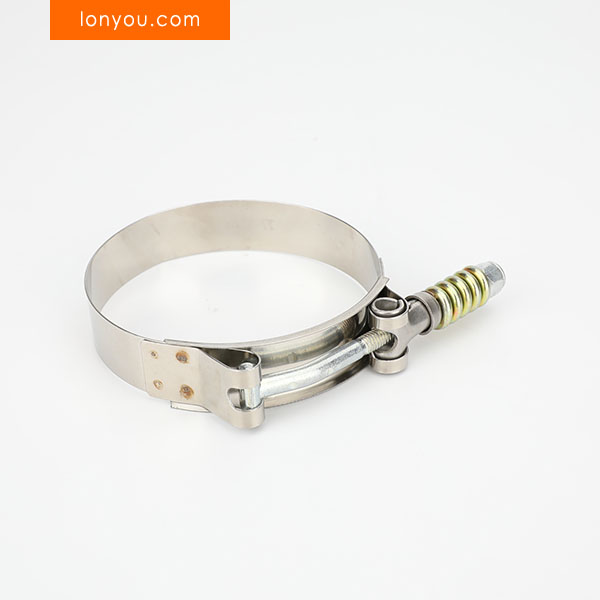

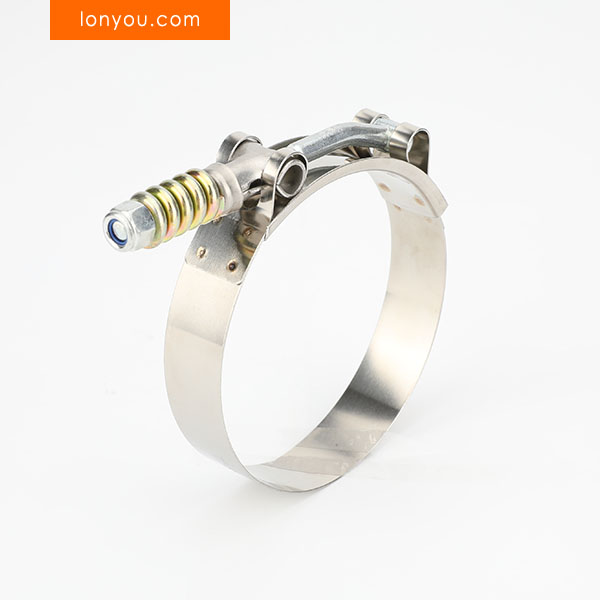

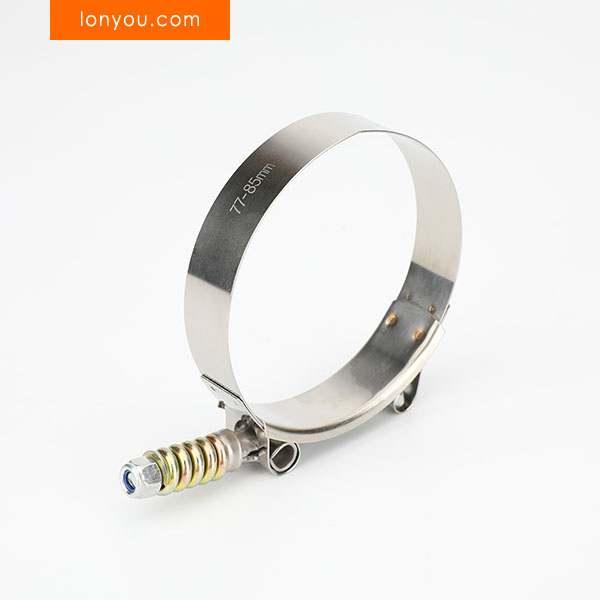

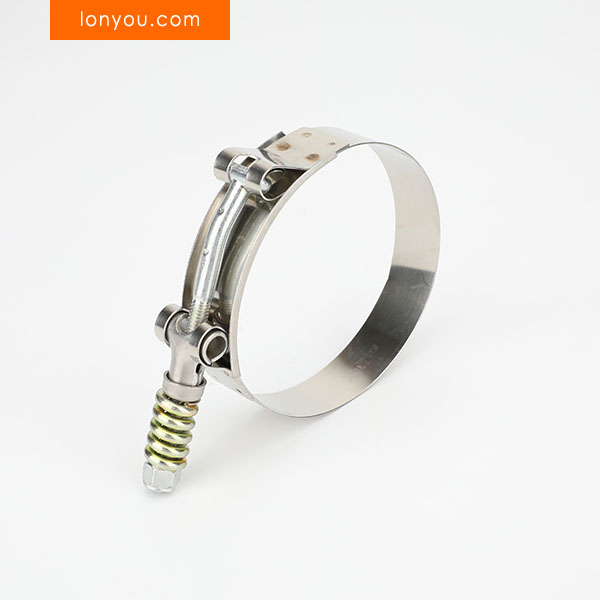

T-Bolt Spring Hose Clamps

T Bolt Spring Hose Clamps are engineered for heavy-duty applications requiring a strong, reliable, and vibration-resistant seal. The robust T-bolt design, combined with a spring mechanism, provides consistent clamping force even under fluctuating temperatures and pressures, preventing leaks in demanding environments. Ideal for securing hoses in automotive, industrial, marine, and agricultural equipment, these clamps offer superior performance compared to traditional worm-drive clamps, especially where high torque and secure connections are critical.

Features

• Heavy-duty T-bolt construction for high clamping force and durability.
• Integrated spring mechanism compensates for hose expansion and contraction due to temperature changes, maintaining a consistent seal.
• Provides superior resistance to vibration and shock, preventing loosening.
• Available in various materials, including zinc-plated steel and stainless steel, for different levels of corrosion resistance.
• Wide range of sizes to accommodate various hose diameters.
• Easy to install and remove with standard tools (wrench or socket).
• Offers a uniform 360-degree clamping force for a leak-proof seal.
• Ideal for high-pressure and high-temperature applications.
• Reusable and long-lasting.
• Suitable for securing silicone hoses and other flexible materials that are prone to compression set.

Technical Data

• Material Options: Stainless Steel 201 & 304
• Clamp Diameter Range: Varies widely depending on the model (examples: 17mm - 19mm, 51mm - 59mm, 102mm - 110mm)
• Band Width: Typically ranges from 19mm (3/4") to 25mm (1") or wider
• T-Bolt Diameter: Common sizes include M5, M6, M8
• Spring Material: Typically spring steel or stainless steel
• Maximum Torque Rating: Varies significantly by size and material (refer to specific product specifications)
• Operating Temperature Range: Dependent on the material (e.g., Zinc-Plated Steel: -40°C to +120°C, Stainless Steel: -60°C to +260°C or higher)
• Corrosion Resistance: Stainless Steel offers excellent corrosion resistance (grade dependent).
• Application Torque: Recommended torque for proper sealing (refer to product instructions)
• Common Applications: Automotive air intake systems, turbocharger hoses, coolant hoses, exhaust systems, industrial machinery, agricultural equipment, marine hoses.

Specifications

To customize any other sizes, please contact sales for further information.
