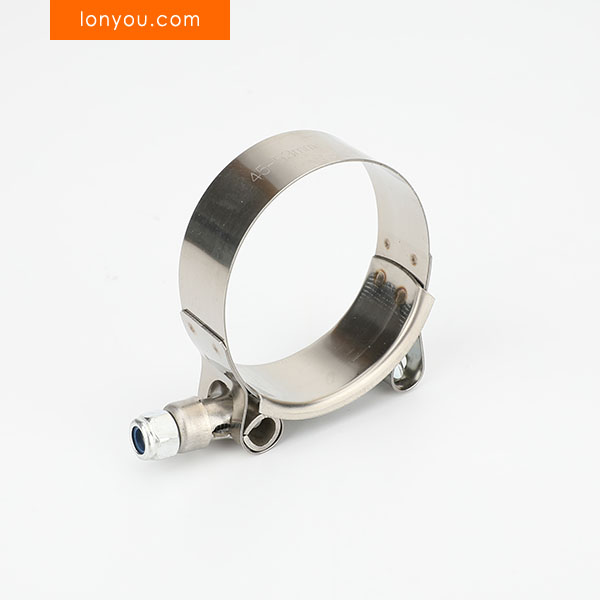

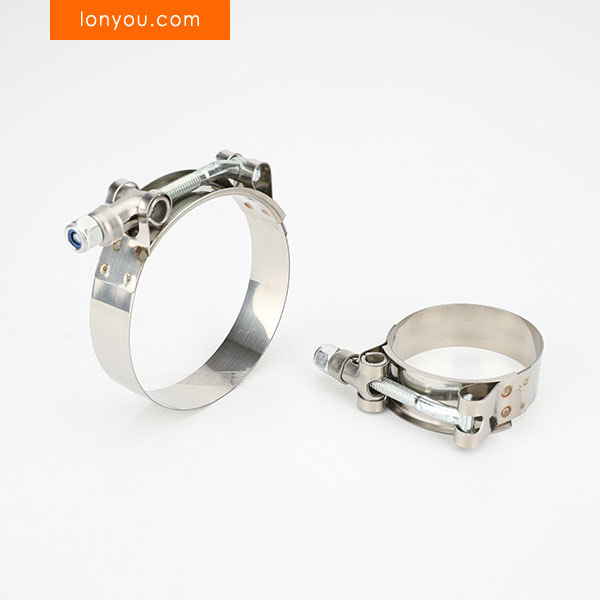

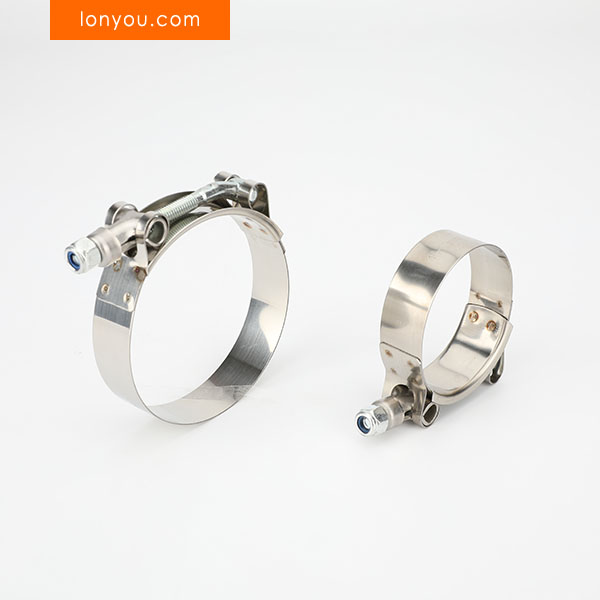

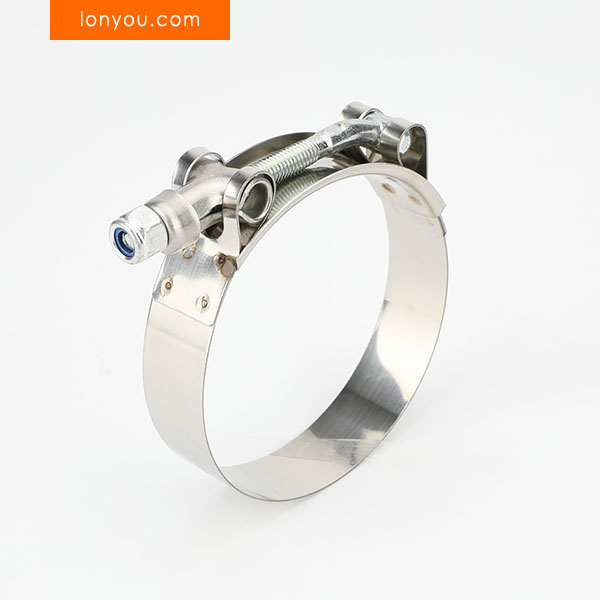

T-Bolt Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews
T Bolt Hose Clamps are heavy-duty fastening solutions designed for high-pressure and high-vibration applications. Featuring a robust band and a strong T-bolt closure mechanism, these clamps provide superior clamping force and a 360-degree seal, ensuring a leak-proof connection for hoses and ducts. Ideal for use in automotive, industrial, marine, and agricultural applications, T Bolt Hose Clamps offer exceptional reliability and durability in demanding environments where standard worm-drive clamps may not provide sufficient strength.
Features
- Provides superior clamping force compared to traditional hose clamps.
- Ensures a 360-degree uniform sealing pressure around the hose.
- Features a high-strength T-bolt and nut for secure and reliable closure.
- Constructed from durable materials such as carbon steel or stainless steel for corrosion resistance.
- Available in various band widths and diameter ranges to accommodate different hose sizes.
- Easy to install and remove with standard tools.
- Designed to withstand high levels of vibration and pressure fluctuations.
- Offers excellent resistance to stripping and over-tightening.
- Suitable for connecting silicone hoses, rubber hoses, and other heavy-duty ducting.
- Provides a robust and long-lasting fastening solution.
Technical Data
- Material Options (Band & Bridge): Carbon Steel (zinc plated), Stainless Steel (various grades like 304 or 316)
- Bolt Material: Carbon Steel (zinc plated), Stainless Steel (various grades like 304 or 316)
- Nut Material: Carbon Steel (zinc plated), Stainless Steel (various grades like 304 or 316)
- Band Width Options: Typically 19mm (3/4 inch) or 25.4mm (1 inch)
- Diameter Range: Varies widely depending on the specific clamp size (examples: 17-19mm, 51-57mm, 102-114mm)
- Maximum Torque Rating: Varies depending on the clamp size and material (refer to specific product specifications)
- Operating Temperature Range: Dependent on the material used (e.g., Stainless Steel offers a wider range than zinc-plated carbon steel). Refer to specific material properties.
- Corrosion Resistance: Zinc-plated Carbon Steel: Offers moderate corrosion resistance; Stainless Steel: Offers excellent corrosion resistance (grade dependent).
- Application Torque: Recommended torque for proper sealing (refer to specific product instructions)
- Bolt Thread Size: Varies depending on the clamp size
- Bridge Design: Solid band with welded or interlocked bridge
- Edge Treatment: Smooth or rounded edges to prevent hose damage
- Packaging: Typically sold individually or in sets
Specifications
Code |
Width (mm) |
Thickness (mm) |
Diameter (mm) |
Bolt Size (mm) |
TB032 | 19.0 | 0.6 | 32-37 | M6*75 |
TB035 | 19.0 | 0.6 | 35-40 | M6*75 |
TB038 | 19.0 | 0.6 | 38-43 | M6*75 |
TB041 | 19.0 | 0.6 | 41-46 | M6*75 |
TB047 | 19.0 | 0.6 | 47-56 | M6*75 |
TB050 | 19.0 | 0.6 | 50-59 | M6*75 |
TB054 | 19.0 | 0.6 | 54-62 | M6*75 |
TB057 | 19.0 | 0.6 | 57-65 | M6*75 |
TB060 | 19.0 | 0.6 | 60-69 | M6*75 |
TB063 | 19.0 | 0.6 | 63-71 | M6*75 |
TB066 | 19.0 | 0.6 | 66-75 | M6*75 |
TB069 | 19.0 | 0.6 | 69-78 | M6*75 |
TB073 | 19.0 | 0.6 | 73-81 | M6*75 |
TB076 | 19.0 | 0.6 | 76-85 | M6*75 |
TB079 | 19.0 | 0.6 | 79-88 | M6*75 |
TB082 | 19.0 | 0.6 | 82-91 | M6*75 |
TB085 | 19.0 | 0.6 | 85-94 | M6*75 |
TB088 | 19.0 | 0.6 | 88-97 | M6*75 |
TB092 | 19.0 | 0.6 | 92-101 | M6*75 |
TB095 | 19.0 | 0.6 | 95-104 | M6*75 |
TB101 | 19.0 | 0.6 | 101-110 | M6*75 |
TB108 | 19.0 | 0.6 | 108-116 | M6*75 |
TB114 | 19.0 | 0.6 | 114-123 | M6*75 |
TB120 | 19.0 | 0.6 | 120-129 | M6*75 |
TB127 | 19.0 | 0.6 | 127-135 | M6*75 |
TB133 | 19.0 | 0.6 | 133-142 | M6*75 |
TB139 | 19.0 | 0.6 | 139-148 | M6*75 |
TB146 | 19.0 | 0.6 | 146-154 | M6*75 |
TB152 | 19.0 | 0.6 | 152-161 | M6*75 |
TB158 | 19.0 | 0.6 | 158-167 | M6*75 |
TB165 | 19.0 | 0.6 | 165-173 | M6*75 |
TB171 | 19.0 | 0.6 | 171-180 | M6*75 |
TB177 | 19.0 | 0.6 | 177-186 | M6*75 |
TB184 | 19.0 | 0.6 | 184-193 | M6*75 |
TB190 | 19.0 | 0.6 | 190-199 | M6*75 |
TB196 | 19.0 | 0.6 | 196-205 | M6*75 |
TB203 | 19.0 | 0.6 | 203-212 | M6*75 |
To customize any other sizes, please contact sales for further information.
