Spiral Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews

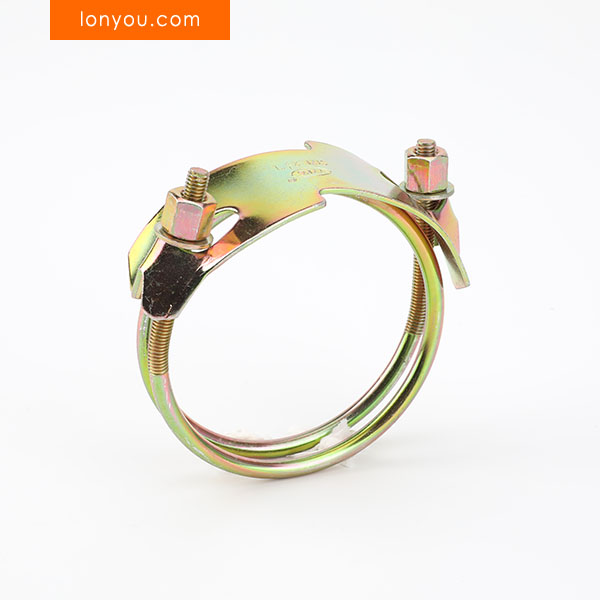

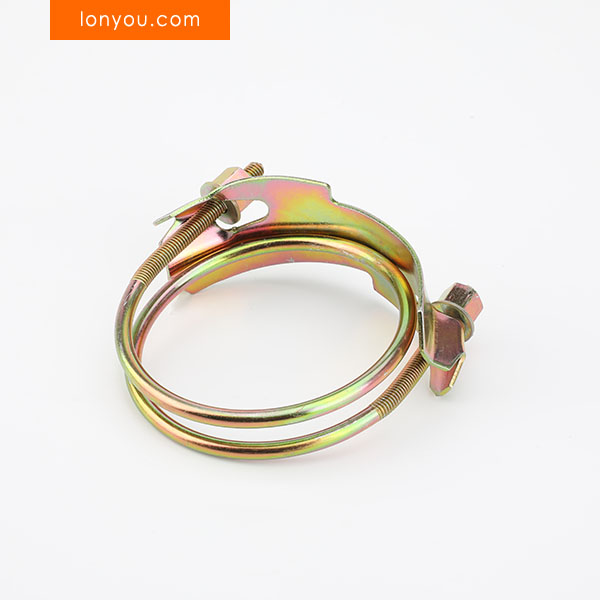

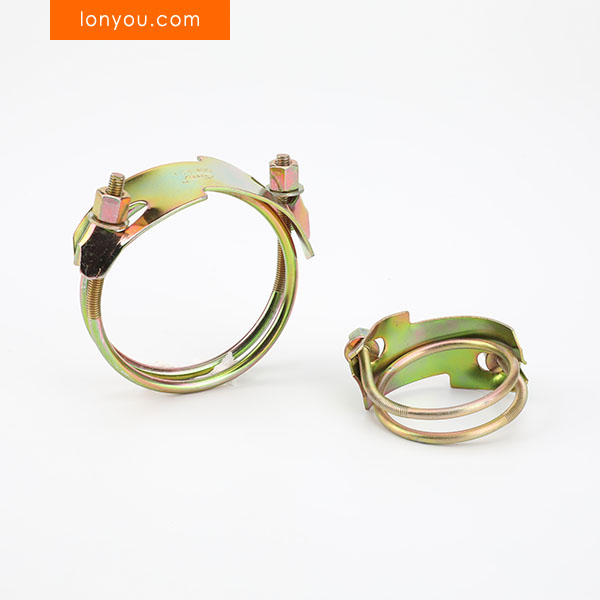

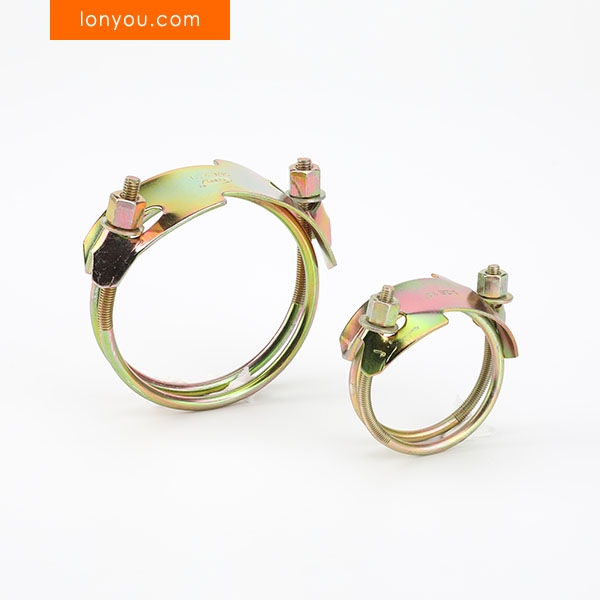

Spiral (Tiger) Hose Clamps are designed for securing hoses in applications where high clamping force and flexibility are required, particularly for hoses that are soft, prone to compression, or subject to temperature fluctuations. Their distinctive spiral or coiled band design provides consistent pressure around the circumference of the hose, offering a tight and reliable seal. This unique construction helps to prevent leaks and damage, making them suitable for various industries including automotive, agriculture, and irrigation.
Features
- Unique spiral or coiled band design for consistent and even clamping pressure.
- Excellent for soft hoses and applications where compression needs to be managed.
- Provides good sealing performance even with temperature variations and hose expansion/contraction.
- Typically made from spring steel or stainless steel for durability and corrosion resistance.
- Offers a strong and reliable hold to prevent leaks.
- Easy to install and remove using appropriate tools like pliers.
- Available in various sizes to accommodate different hose outer diameters.
- Can often be reused, making them a cost-effective solution.
- Suitable for low to medium pressure applications.
- Compact design allows for use in tight spaces.
Technical Data
- Material Options: Spring Steel (typically zinc-plated or similar coating), Stainless Steel (various grades like 304)
- Band Design: Single or double wire spiral (coil)
- Wire Diameter: Varies depending on the clamp size and intended pressure rating (e.g., 1.5mm to 3mm)
- Clamp Inner Diameter (ID) Range: Available in various sizes to fit specific hose outer diameters (e.g., from a few millimeters up to several inches)
- Recommended Hose Outer Diameter (OD) Range: Specified by the manufacturer for optimal performance.
- Maximum Clamping Force: Varies significantly based on the size, material, and wire diameter of the clamp (refer to specific product specifications)
- Corrosion Resistance: Zinc-plated Spring Steel: Offers moderate corrosion resistance; Stainless Steel: Offers excellent corrosion resistance.
- Operating Temperature Range: Dependent on the material used (e.g., Spring Steel with coating may have a narrower range than Stainless Steel). Refer to specific material properties.
- Application Pressure Range: Typically suitable for low to medium pressure applications (specific limits will be provided by the manufacturer).
- Installation Tool: Pliers (standard or specialized hose clamp pliers)
- Reusability: Generally reusable, but inspect for damage or deformation before reapplication.
- Common Applications: Automotive hoses (fuel lines, vacuum lines, coolant hoses), irrigation systems, agricultural equipment, low-pressure fluid and air lines.
Specifications
Diameter (inch) |
Diameter (mm) |
Wire Size (mm) |
Plate Thickness (mm) |
Nut Size (mm) |
1 | 28-34 | 4.3 | 1.5 | M5 |
1.2 | 34-40 | 4.3 | 1.5 | M5 |
1.5 | 44-50 | 4.3 | 1.5 | M5 |
2 | 54-60 | 4.3 | 1.5 | M5 |
2.2 | 67-73 | 4.3 | 1.5 | M5 |
2.5 | 71-77 | 5.2 | 1.5 | M5 |
2.75 | 79-85 | 5.2 | 1.5 | M6 |
3 | 88-94 | 5.2 | 1.5 | M6 |
3.5 | 95-102 | 5.2 | 1.5 | M6 |
4 | 108-116 | 7.0 | 2.0 | M8 |
4.5 | 122-130 | 7.0 | 2.0 | M8 |
5 | 134-141 | 7.0 | 2.0 | M8 |
5.5 | 147-155 | 7.0 | 2.0 | M8 |
6 | 160-169 | 9.0 | 2.5 | M10 |
6.5 | 179-188 | 9.0 | 2.5 | M10 |
7 | 190-200 | 9.0 | 2.5 | M10 |
7.5 | 200-210 | 9.0 | 2.5 | M10 |
8 | 222-232 | 9.0 | 2.5 | M10 |
8.5 | 230-240 | 9.0 | 2.5 | M10 |
9 | 240-252 | 9.0 | 2.5 | M10 |
9.5 | 268-280 | 9.0 | 2.5 | M10 |
10 | 278-290 | 9.0 | 2.5 | M10 |
10.5 | 295-305 | 9.0 | 2.5 | M10 |
11 | 303-315 | 9.0 | 2.5 | M10 |
11.5 | 313-325 | 9.0 | 2.5 | M10 |
12 | 318-330 | 9.0 | 2.5 | M10 |
13 | 338-350 | 9.0 | 2.5 | M10 |
14 | 358-370 | 9.0 | 2.5 | M10 |
15 | 392-405 | 9.0 | 2.5 | M10 |
16 | 417-420 | 9.0 | 2.5 | M10 |
Please contact sales for customizing any other sizes.
