Single Ear Hose Clamps
Tamper-proof, Leak-free Seal, 360-degree Clamping Force
Corrosion Resistant, Rust-proof & Long-Lasting
Min. Order: 1,000 PCS
Reference FOB Price: 0.1~1.0 USD/PCS
Basic Info & Terms
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Products
Contact Now
Description
Reviews

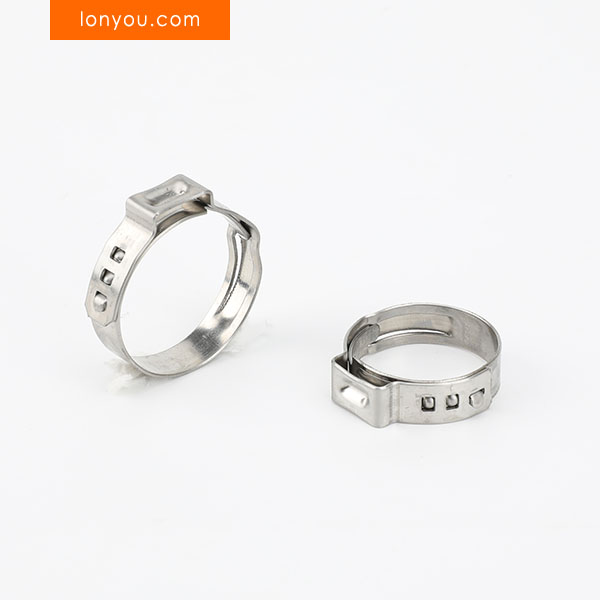

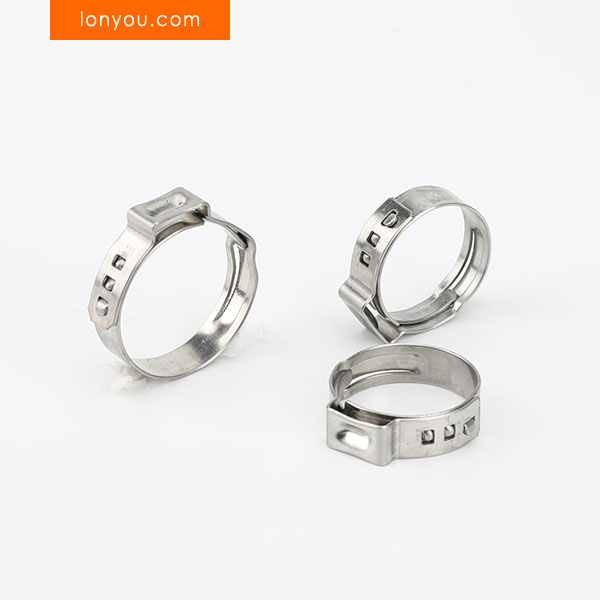

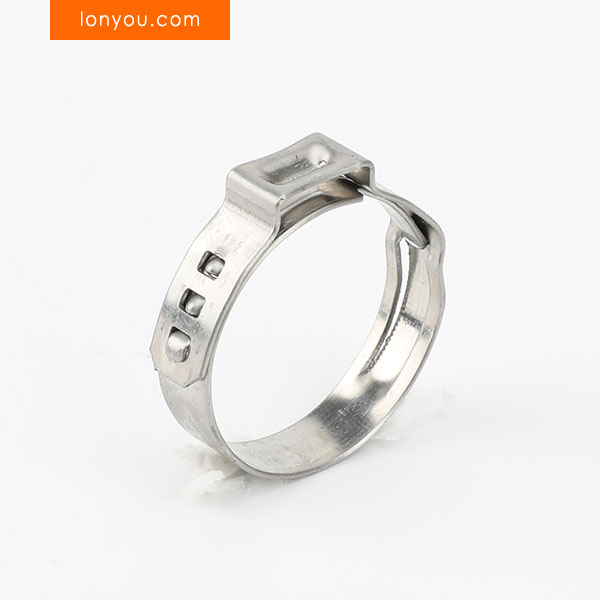

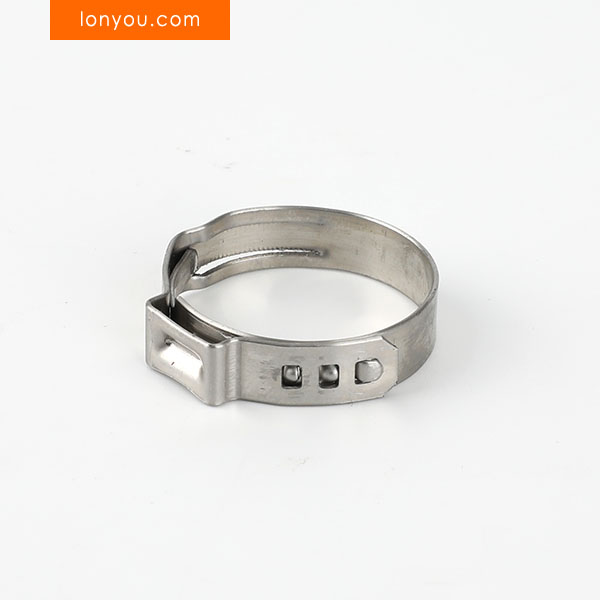

Single Ear Hose Clamps, also known as O-Clamps or Pinch Clamps, provide a quick, simple, and cost-effective method for creating a tight and reliable seal on hoses and tubes. Their unique design features a single "ear" that, when crimped using specialized pliers, exerts a consistent radial force around the hose, ensuring a leak-proof connection. These clamps are tamper-resistant and offer a lightweight, compact solution suitable for a wide range of low-pressure applications.
Features
- Simple and efficient one-piece design.
- Provides a 360-degree uniform sealing pressure around the hose.
- Tamper-resistant once properly installed.
- Lightweight and compact design.
- Cost-effective fastening solution.
- Quick and easy installation using single ear clamp pliers.
- Available in various materials, including carbon steel and stainless steel, for different levels of corrosion resistance.
- Smooth, burr-free inner band to prevent damage to the hose.
- Offers a permanent and secure connection.
- Suitable for a wide range of low-pressure applications in automotive, industrial, and domestic settings.
Technical Data
- Material Options: Carbon Steel (zinc-plated), Stainless Steel (various grades like 304, 316)
- Band Width: Typically ranges from 5mm to 12mm
- Band Thickness: Typically ranges from 0.5mm to 0.8mm
- Size Range (Inner Diameter): Available to fit hoses with inner diameters ranging from approximately 3mm up to larger sizes (e.g., 30mm or more)
- Clamping Range: Each clamp size has a specific clamping range to ensure optimal sealing.
- Corrosion Resistance: Carbon Steel (zinc-plated): Offers moderate corrosion resistance; Stainless Steel: Offers excellent corrosion resistance (grade dependent).
- Recommended Application Pressure: Suitable for low to medium pressure applications (specific pressure ratings vary by size and material; consult product specifications).
- Installation Tool: Single Ear Hose Clamp Pliers (various types available for different sizes and materials)
- Temperature Range: Dependent on the hose material and clamp material (refer to specific product data sheets).
- Finish: Zinc-plated (for carbon steel), natural finish (for stainless steel)
- Standards Compliance (if applicable): May comply with certain DIN or other industry standards.
Specifications
Diameter Range (mm) |
Band Width (mm) |
Band Thickness (mm) |
5.5-6.5 | 5 | 0.5 |
5.8-7.0 | 5 | 0.5 |
6.8-8.0 | 5 | 0.5 |
7.0-8.7 | 5 | 0.5 |
7.3-9.0 | 5 | 0.5 |
7.8-9.5 | 5 | 0.5 |
8.3-10.0 | 5 | 0.5 |
8.8-10.5 | 5 | 0.5 |
9.2-10.9 | 5 | 0.5 |
9.6-11.3 | 5 | 0.5 |
10.1-11.8 | 5 | 0.5 |
9.4-11.9 | 7 | 0.6 |
9.8-12.3 | 7 | 0.6 |
10.3-12.8 | 7 | 0.6 |
10.8-13.3 | 7 | 0.6 |
11.3-13.8 | 7 | 0.6 |
11.5-14.0 | 7 | 0.6 |
12.0-14.5 | 7 | 0.6 |
12.3-14.8 | 7 | 0.6 |
12.8-15.3 | 7 | 0.6 |
13.2-15.7 | 7 | 0.6 |
13.7-16.2 | 7 | 0.6 |
14.1-16.6 | 7 | 0.6 |
14.3-16.8 | 7 | 0.6 |
14.5-17.0 | 7 | 0.6 |
15.0-17.5 | 7 | 0.6 |
14.6-17.8 | 7 | 0.6 |
14.8-18.0 | 7 | 0.6 |
15.3-18.5 | 7 | 0.6 |
16.0-19.2 | 7 | 0.6 |
16.6-19.8 | 7 | 0.6 |
17.8-21.0 | 7 | 0.6 |
For further information about other sizes, please contact sales for help.
