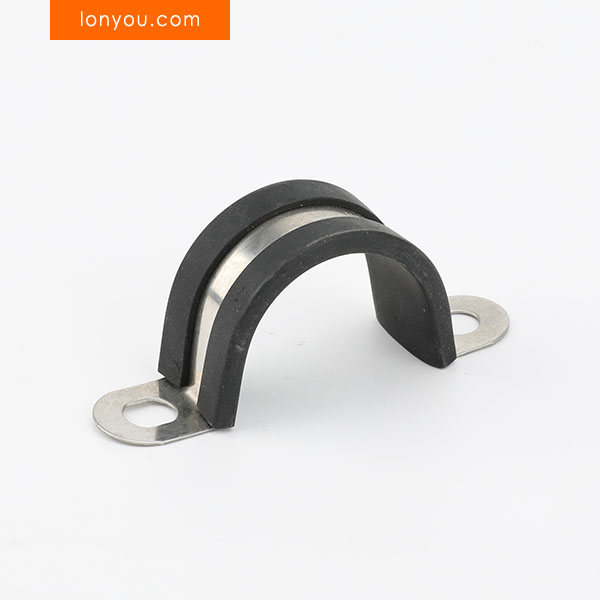

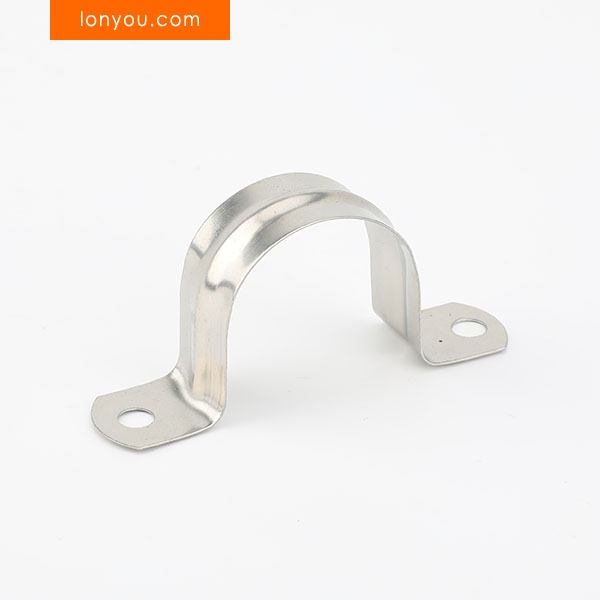

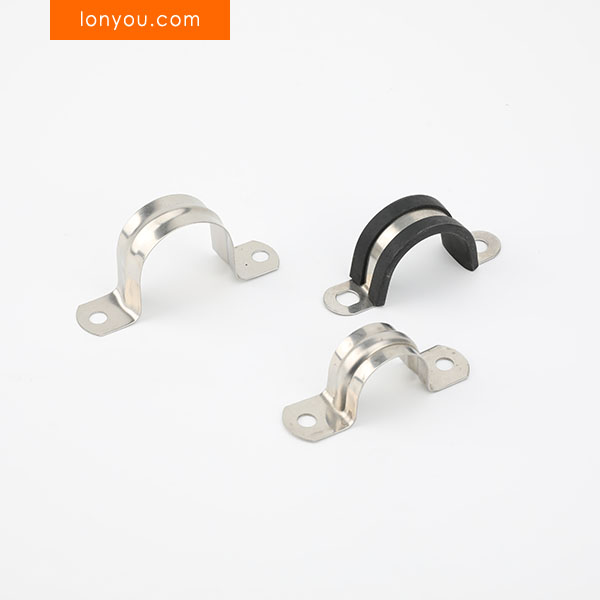

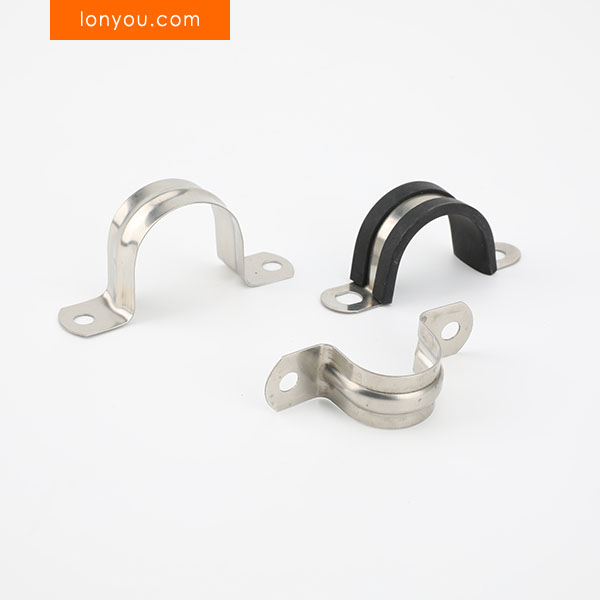

Saddle Type Hose Clamps

Saddle Type Hose Clamps are designed to provide a secure and leak-proof seal for hoses, particularly in applications where a strong, even clamping force is required over a specific area. Their unique saddle design distributes pressure more uniformly around the hose circumference compared to traditional worm drive clamps, reducing the risk of hose damage or extrusion, especially with softer or more pliable hose materials. These clamps are ideal for automotive, industrial, and agricultural applications where reliable and robust hose connections are essential.

Features

• Features a distinctive saddle or bridge that distributes clamping force evenly.
• Provides enhanced sealing capability, especially on softer hoses.
• Reduces the risk of hose damage, cutting, or extrusion.
• Offers a strong and reliable connection under pressure and vibration.
• Constructed from durable materials such as steel or stainless steel for corrosion resistance.
• Available in various sizes to accommodate a wide range of hose diameters.
• Typically secured with one or two bolts or screws for tightening.
• Easy to install using standard wrenches or screwdrivers.
• Suitable for applications involving silicone hoses, radiator hoses, and other flexible tubing.
• Offers a robust and long-lasting clamping solution.

Technical Data

• Material Options: Steel (zinc-plated or other coatings), Stainless Steel (various grades like 304 or 316)
• Clamp Size Range (Inner Diameter): Varies widely depending on the model (examples: 10mm - 25mm, 25mm - 50mm, up to larger industrial sizes)
• Saddle Width: Varies depending on the clamp size and intended application
• Bolt/Screw Material: Typically Steel (zinc-plated) or Stainless Steel
• Bolt/Screw Size and Quantity: Usually one or two bolts/screws per clamp, with sizes varying (e.g., M5, M6)
• Maximum Torque Rating: Varies depending on the clamp size and material (refer to manufacturer specifications)
• Corrosion Resistance: Zinc-Plated Steel: Offers moderate corrosion resistance; Stainless Steel: Offers excellent corrosion resistance (grade dependent).
• Operating Temperature Range: Dependent on the material used (e.g., Stainless Steel generally has a wider range). Refer to specific material properties and any liner materials used.
• Application Torque: Recommended torque for proper sealing without damaging the hose.
• Band Width (of the base): Varies depending on the clamp size and design.
• Common Applications: Automotive radiator and heater hoses, silicone hoses, low-pressure hydraulic lines, agricultural equipment hoses.

Specifications

Please contact sales for customizing any other sizes.
