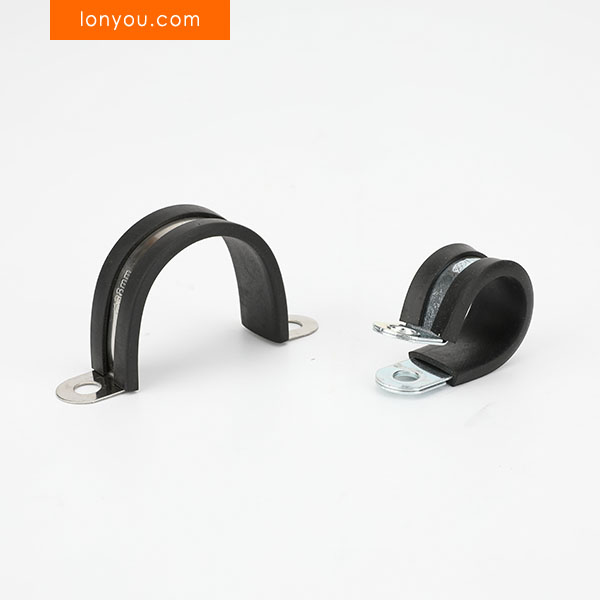

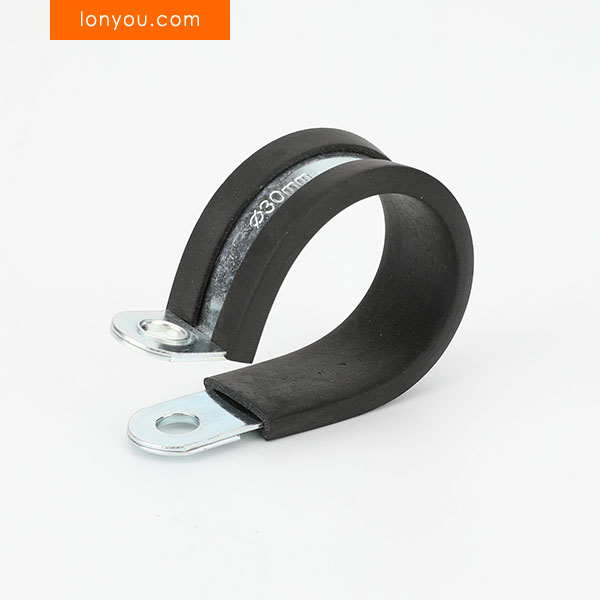

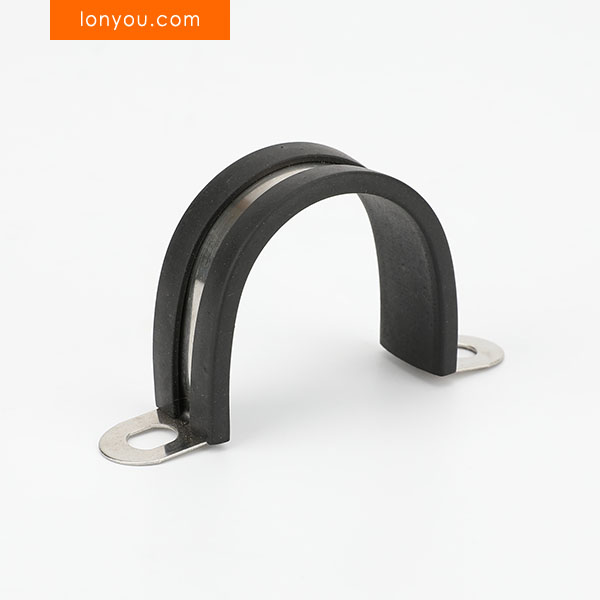

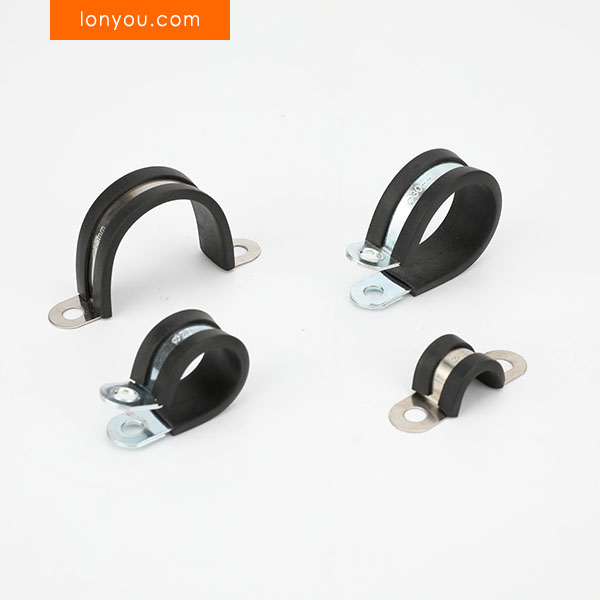

Rubber Lined Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews
Rubber Lined Hose Clamps are designed to provide secure and vibration-dampening fastening for hoses, tubes, and cables in a variety of applications. The integrated rubber liner not only creates a tight, leak-proof seal but also protects the clamped component from abrasion, chafing, and damage caused by metal-on-metal contact. These clamps are ideal for use in automotive, marine, plumbing, HVAC, and industrial settings where vibration reduction and component protection are crucial.
Features
- Features a durable metal band, typically made of galvanized steel or stainless steel.
- Integrated rubber lining provides cushioning, vibration dampening, and prevents abrasion.
- Ensures a tight and leak-proof seal without damaging the clamped component.
- Available in various sizes to accommodate a wide range of hose and tube diameters.
- Easy to install using standard tools, often with a screw-tightening mechanism.
- Offers excellent resistance to corrosion, especially stainless steel variants.
- Suitable for securing soft or sensitive hoses and tubes.
- Helps to reduce noise and wear in dynamic environments.
- Can be used in both indoor and outdoor applications.
- Provides a professional and secure fastening solution.
Technical Data
- Band Material Options: Galvanized Steel, Stainless Steel (various grades like 304)
- Liner Material Options: EPDM Rubber, Neoprene Rubber, Silicone Rubber (depending on chemical and temperature resistance requirements)
- Clamp Diameter Range: Varies widely depending on the model (examples: 6mm to 25mm, 19mm to 32mm, etc.)
- Band Width: Typically ranges from 9mm to 19mm
- Liner Thickness: Typically ranges from 1.5mm to 3mm
- Operating Temperature Range: Dependent on the liner material (e.g., EPDM: -40°C to +120°C, Neoprene: -30°C to +100°C, Silicone: -60°C to +200°C)
- Corrosion Resistance: Galvanized Steel: Moderate corrosion resistance; Stainless Steel: Excellent corrosion resistance; Screw Material: Typically zinc-plated steel or stainless steel
- Tightening Torque: Recommended torque values will vary by clamp size and material (refer to product specifications)
- Vibration Damping: Provides significant reduction in vibration transmission compared to unlined clamps.
- Common Applications: Automotive hoses, fuel lines, hydraulic lines, coolant hoses, air ducts, cable management.
Specifications
Max Diameter (mm) |
Offset Distance (mm) |
Hole Diameter (mm) |
Band Width (mm) |
Rubber Width (mm) |
Band Thickness (mm) |
Clamping Thickness (mm) |
5.0 | 12.2 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
6.0 | 12.7 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
7.0 | 13.2 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
8.0 | 13.7 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
9.0 | 14.2 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
10.0 | 14.7 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
11.0 | 15.2 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
12.0 | 15.7 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
13.0 | 16.2 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
14.0 | 16.7 | 6.4 | 15.0 | 18.0 | 0.6 | 1.6 |
15.0 | 17.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
16.0 | 17.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
17.0 | 18.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
18.0 | 18.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
19.0 | 19.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
20.0 | 19.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
21.0 | 20.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
22.0 | 20.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
23.0 | 21.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
24.0 | 21.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
25.0 | 22.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
26.0 | 22.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
27.0 | 23.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
28.0 | 23.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
29.0 | 24.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
30.0 | 24.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
31.0 | 25.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
32.0 | 25.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
33.0 | 26.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
34.0 | 26.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
35.0 | 27.2 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
40.0 | 29.7 | 6.4 | 15.0 | 18.0 | 0.8 | 1.8 |
11.0 | 20.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
12.0 | 20.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
13.0 | 21.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
15.0 | 22.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
18.0 | 23.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
20.0 | 24.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
22.0 | 25.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
25.0 | 27.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
28.0 | 28.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
30.0 | 29.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
32.0 | 30.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
35.0 | 32.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
38.0 | 33.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
40.0 | 34.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
45.0 | 37.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
50.0 | 37.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
55.0 | 40.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
60.0 | 42.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
65.0 | 45.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
70.0 | 47.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
75.0 | 50.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
80.0 | 52.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
85.0 | 55.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
90.0 | 57.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
95.0 | 60.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
100.0 | 62.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
110.0 | 65.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
120.0 | 67.5 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
130.0 | 70.0 | 8.4 | 20.0 | 24.0 | 1.0 | 1.5 |
To customize any other sizes, please contact sales for further information.
