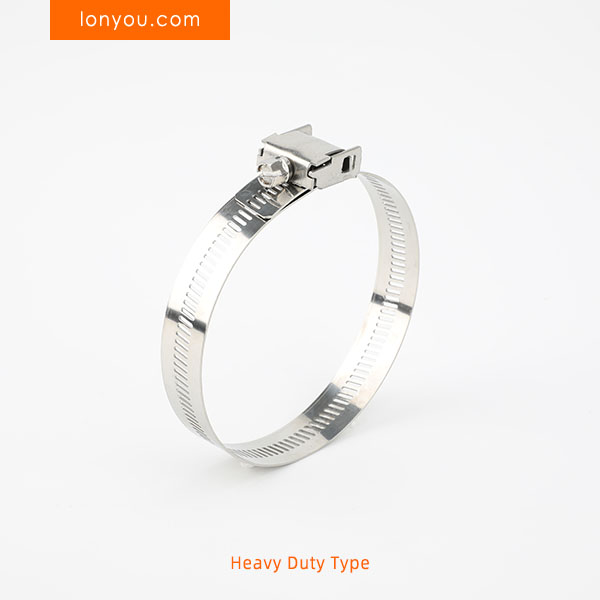

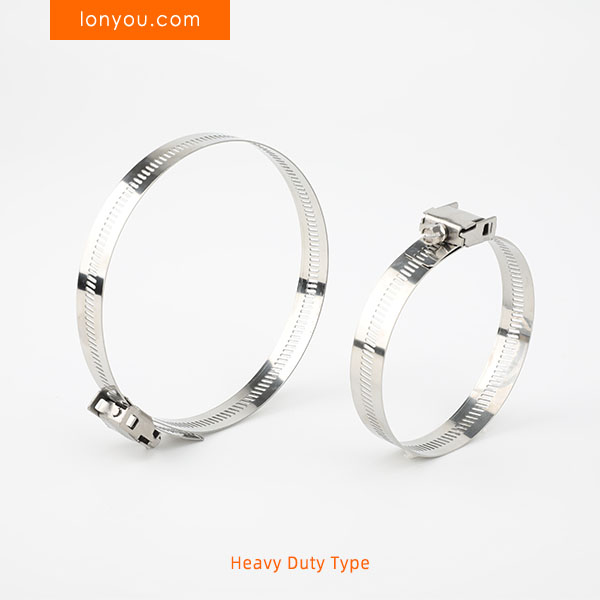

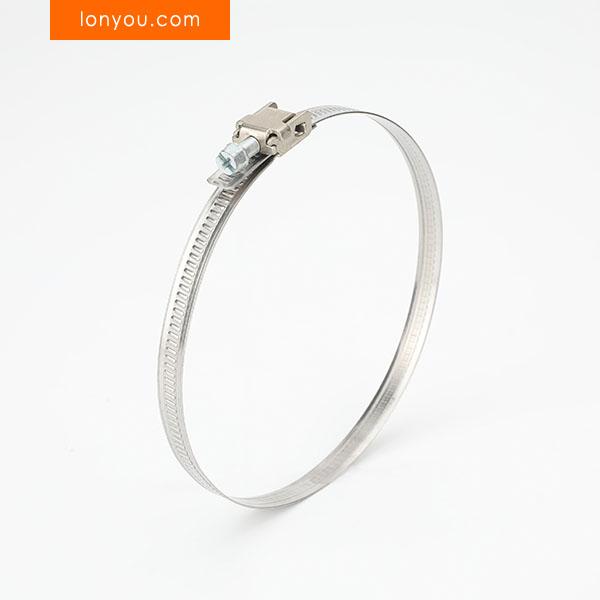

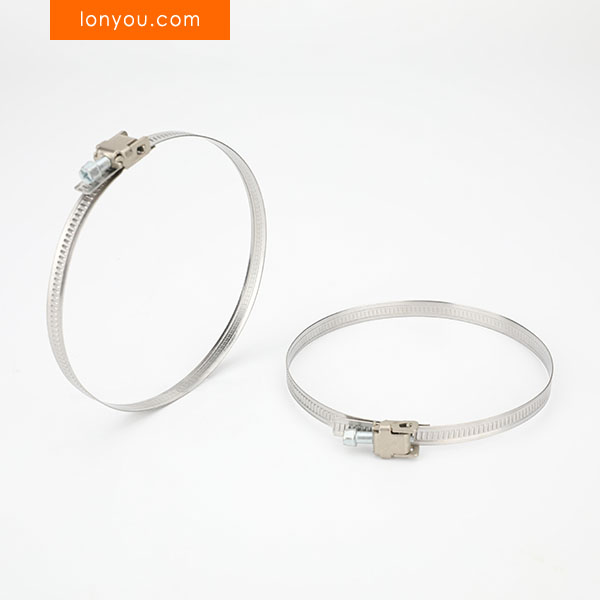

Quick Lock Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews
Quick Lock Hose Clamps are designed for rapid and straightforward installation and removal, offering a convenient and efficient solution for securing hoses and pipes. Featuring a unique quick-locking mechanism, these clamps allow for fast adjustments to the hose diameter before being securely tightened with a screw or similar mechanism. Their design often incorporates smooth band edges to minimize the risk of hose damage, making them suitable for a variety of applications where speed and ease of use are important.
Features
- Designed for quick and easy application and release.
- Allows for pre-adjustment of the band diameter before final tightening.
- Often features smooth band edges to prevent damage to the hose.
- Provides a secure and reliable seal for hoses and pipes.
- Offers flexibility in clamping range for various hose sizes.
- May be available in different materials, such as galvanized steel or stainless steel, for varying levels of corrosion resistance.
- Suitable for applications in industries like water management, air conditioning, construction, and sanitary installations.
- Some designs are particularly well-suited for larger hose diameters.
- Features a housing that facilitates quick locking and tightening.
- Can contribute to reduced assembly times.
Technical Data
- Material Options: Stainless Steel (AISI 430 - W2, AISI 304 - W4, or other grades)
- Band Width: Commonly available in 9mm or 12mm
- Band Thickness: Typically 0.6mm
- Clamping Range (Diameter): Varies significantly by model, ranging from approximately 25mm up to 1300mm or more
- Maximum Tightening Torque: Typically around 4 Nm for smaller sizes
- Screw/Housing Material: May vary depending on the overall clamp material grade (e.g., galvanized steel with a stainless steel band, or all stainless steel)
- Temperature Resistance: Dependent on the materials used; stainless steel options generally offer a wider temperature range
- Corrosion Resistance: Varies based on the material grade (e.g., W2 offers moderate resistance, W4 offers good resistance)
- Ease of Installation: Designed for rapid, tool-assisted installation (typically requiring a screwdriver or similar tool for final tightening)
- Edge Design: Smooth, rolled, or otherwise treated edges to minimize hose damage
- Flexibility: Designed to offer flexibility within its clamping range to accommodate different hose materials and tolerances.
Specifications
Code |
Diameter (mm) |
Width (mm) |
Thickness (mm) |
Material |
QLH010 | 25-100 | 9.0/12.0 | 0.6 | W2/W4 |
QLH020 | 25-125 | 9.0/12.0 | 0.6 | W2/W4 |
QLH030 | 25-150 | 9.0/12.0 | 0.6 | W2/W4 |
QLH040 | 25-175 | 9.0/12.0 | 0.6 | W2/W4 |
QLH050 | 25-200 | 9.0/12.0 | 0.6 | W2/W4 |
QLH060 | 25-225 | 9.0/12.0 | 0.6 | W2/W4 |
QLH070 | 25-250 | 9.0/12.0 | 0.6 | W2/W4 |
QLH080 | 25-275 | 9.0/12.0 | 0.6 | W2/W4 |
QLH090 | 25-300 | 9.0/12.0 | 0.6 | W2/W4 |
QLH100 | 25-350 | 9.0/12.0 | 0.6 | W2/W4 |
QLH110 | 25-400 | 9.0/12.0 | 0.6 | W2/W4 |
QLH120 | 25-450 | 9.0/12.0 | 0.6 | W2/W4 |
QLH130 | 25-500 | 9.0/12.0 | 0.6 | W2/W4 |
QLH140 | 25-550 | 9.0/12.0 | 0.6 | W2/W4 |
QLH150 | 25-600 | 9.0/12.0 | 0.6 | W2/W4 |
QLH160 | 25-650 | 9.0/12.0 | 0.6 | W2/W4 |
QLH170 | 25-700 | 9.0/12.0 | 0.6 | W2/W4 |
QLH180 | 25-750 | 9.0/12.0 | 0.6 | W2/W4 |
To customize any other sizes,please contact sales for further information.
