Stainless Steel Banding Straps
Quick Lock Band Clamps
Quick Lock Band Clamps
Quick Lock Band Clamps
Quick Lock Band Clamps
Quick Lock Band Clamps

Quick Lock Band Clamps

Fast Lock and Release, Adjustable Lengths for Versatile Applications
9.0 & 12.0mm Wide, 0.6mm Thick, Available in SS430 & 304
Min. Order: 50 Rolls
Reference FOB Price: 10.0 ~ 25.0 USD/Roll
Basic Info & Terms

Place of Origin:  China

Brand Name:  LONYOU

Payment Terms: T/T, L/C

Certification:   CE, RoHS

Supply Ability: 10,000 Rolls/Month

Description

Reviews

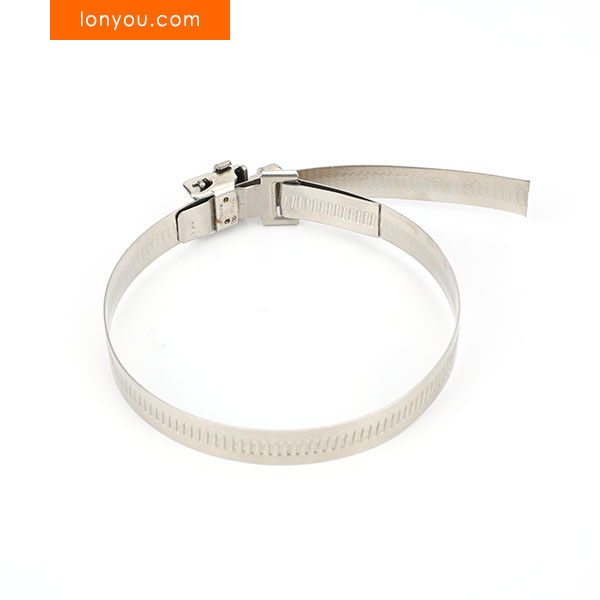

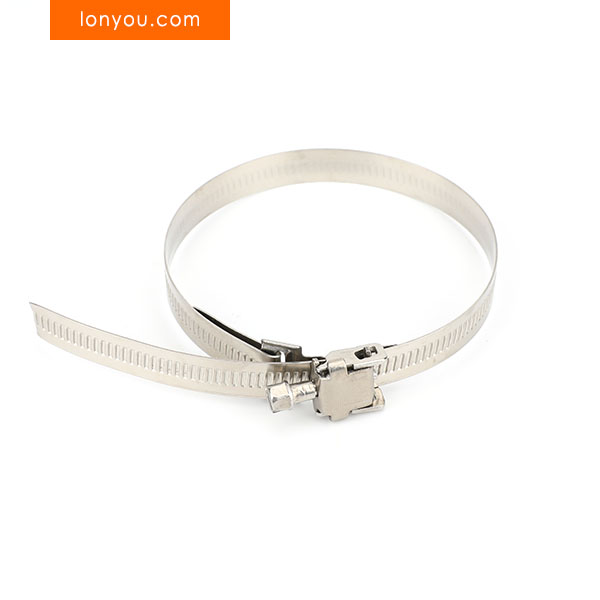

Quick Lock Band Clamps are designed for the rapid and secure fastening of hoses, pipes, and other components. Featuring a unique quick-locking mechanism, these clamps allow for fast and easy installation and removal without the need for tools in many applications. Their robust construction and design ensure a reliable and tight seal, making them suitable for a variety of uses across different industries.

Features

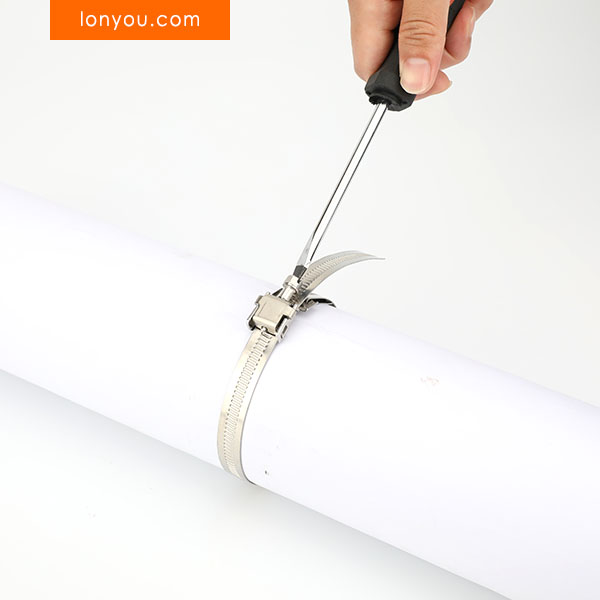

  • Quick Locking Mechanism: Enables fast, tool-free installation and removal in many applications.
  • Continuous Band: Often features a continuously threaded or smooth inner band to provide optimal contact and prevent damage to the clamped object.
  • Flexibility: Accommodates a wide range of diameters within its clamping range.
  • Secure Joint: Designed to create a tight and reliable seal.
  • Various Material Options: Available in different materials, including galvanized steel and stainless steel, to suit various application environments and corrosion resistance needs.
  • Smooth Edges (on some types): Designed to prevent damage to the hose or pipe being clamped.
  • Adjustable: The band can be easily adjusted to the required diameter before the final locking.

Technical Data

  • Material Options: Stainless Steel 304
  • Band Width: 9 mm and 12 mm.
  • Band Thickness: 0.6mm.

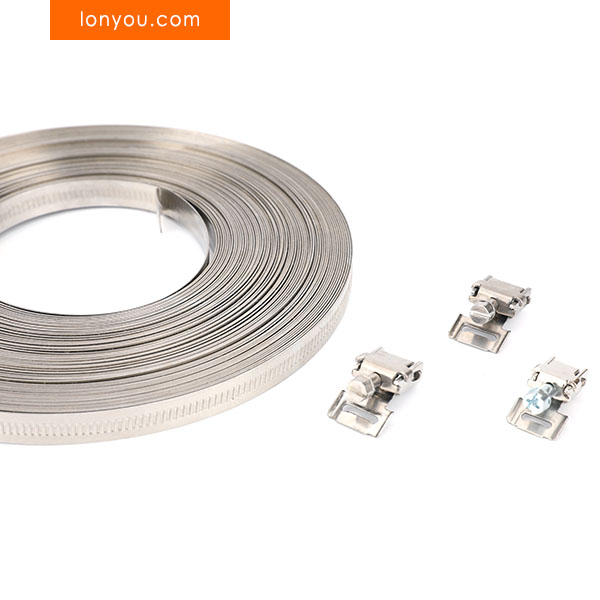

  • Clamping Range: Cut any lengths of the band to make a clamp.
  • Tightening Torque: 2.5 +0.5 Nm.
  • Tightening Speed: Maximum recommended tightening speed may be specified (e.g., Max. 50 RPM).
  • Temperature Resistance: Dependent on the material used; stainless steel options generally offer a wider temperature range.
  • Corrosion Resistance: Varies based on the material grade (e.g., galvanized steel offers basic corrosion resistance, while stainless steel provides higher resistance).
  • Applications: Suitable for various applications including water industry, air conditioning, construction, and sanitary installations.

Specifications

Code Specifications Material Quantity
GK09B Band - 9.0 X 0.6mm SS304 30 M
GK12B Band - 12.0 X 0.6mm SS304 30 M
GK09H Clamp - 9.0mm SS304 50 PCS
GK12H Clamp - 12.0mm SS304 50 PCS
