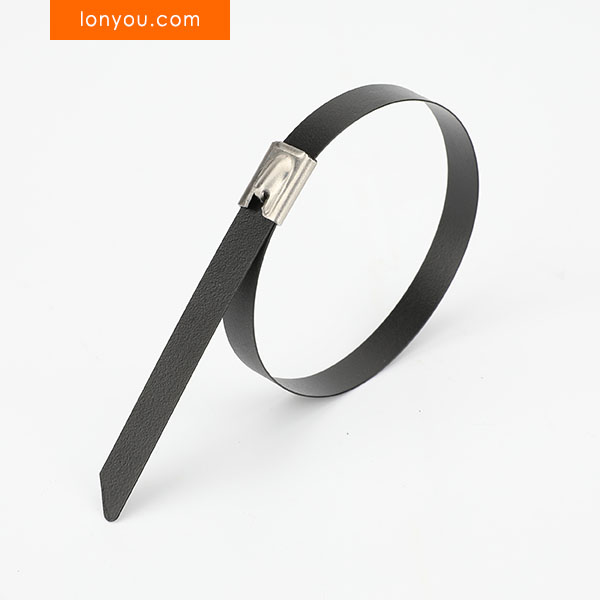

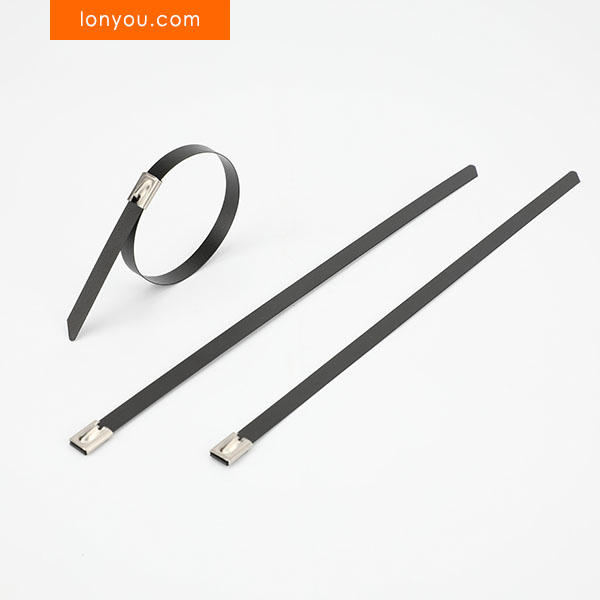

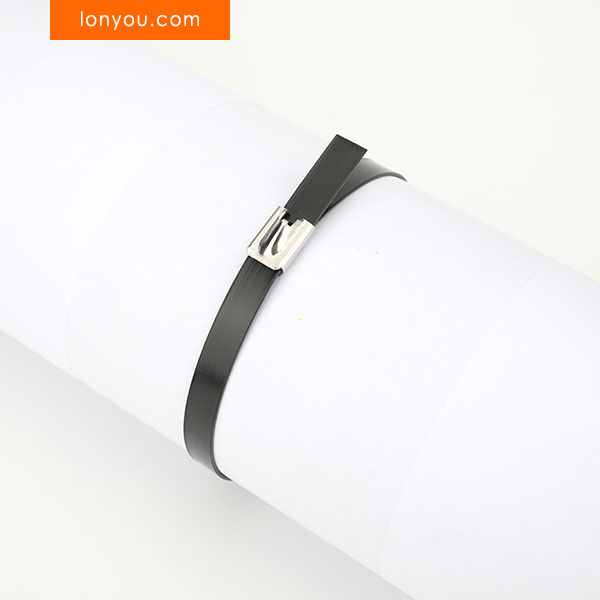

PVC Coated Ball Lock Cable Ties

PVC Coated Ball Lock Cable Ties offer a robust and versatile solution for bundling and securing cables in a variety of environments. These cable ties feature a durable stainless steel core encased in a smooth, protective PVC coating. This combination provides exceptional strength, corrosion resistance, and protection against abrasion, chemicals, and UV exposure. The ball lock mechanism ensures a quick, secure, and permanent fastening, making them ideal for both indoor and outdoor applications where durability and cable protection are paramount.

Features

• Stainless steel core provides high tensile strength and durability.
• Smooth PVC coating offers excellent protection against abrasion, moisture, dust, and chemicals.
• Ball lock mechanism ensures a fast, secure, and non-releasable locking.
• Resistant to UV radiation, making them suitable for outdoor use.
• Available in various lengths and widths to accommodate different bundling requirements.
• Provides a comfortable and protective surface against the bundled cables.
• Suitable for a wide range of applications, including industrial, construction, marine, and automotive.
• Resistant to a wide range of temperatures.
• Offers enhanced insulation properties due to the PVC coating.

Technical Data

• Core Material: Stainless Steel (typically Grade 304 or 316)
• Coating Material: PVC (Polyvinyl Chloride)
• Operating Temperature Range: -40°C to +85°C (-40°F to +185°F) (may vary slightly depending on PVC compound)
• Tensile Strength: Varies significantly based on width and stainless steel core grade (e.g., from 445 N/100 lbs to over 890 N/200 lbs)
• Coating Thickness: Typically ranges from 0.3 mm to 0.5 mm
• UV Resistance: Good to Excellent (depending on the specific PVC compound and UV stabilizers)
• Chemical Resistance: Good resistance to many oils, greases, salts, and some acids and alkalis (refer to specific chemical resistance charts for detailed information)
• Flammability Rating: Typically self-extinguishing (refer to specific product specifications)
• Loop Tensile Strength: Corresponds to the tensile strength of the stainless steel core
• Standard Lengths: Available in various lengths (e.g., 100mm, 200mm, 300mm, etc.)
• Standard Widths: Available in various widths (e.g., 4.6mm, 7.9mm, 12.0mm, etc.)
• Locking Mechanism: Single Ball Lock

Specifications

Note: Any lengths from 150 to 1000mm are available for custom.
