Outdoor Rainproof Electrical Enclosures with Inner Door
Outdoor Rainproof Electrical Enclosures with Inner Door
Outdoor Rainproof Electrical Enclosures with Inner Door
Outdoor Rainproof Electrical Enclosures with Inner Door

Outdoor Rainproof Electrical Enclosures with Inner Door

Weatherproof, Space-Saving & Corrosion Resistant
Made of SS304 & 316 Stainless Steel
Min. Order: 50 EA
Reference FOB Price: 25.0~100.0 USD/EA
Basic Info & Terms

Place of Origin:  China

Brand Name:  LONYOU

Payment Terms: T/T, L/C

Certification:   CE RoHS

Supply Ability: 100,000 EA/Month

Description

Reviews

Outdoor Rainproof Electrical Enclosures with Inner Doors offer a dual-layer protection system for sensitive electrical and electronic equipment installed in outdoor and harsh environments. These robust enclosures combine the weatherproof features of our standard outdoor range with an additional inner door, providing enhanced security, improved organization, and an extra barrier against moisture and dust. Ideal for complex control systems, critical power distribution, and installations requiring segregated access to components, these enclosures ensure the reliable and safe operation of vital equipment while offering an added layer of protection and convenience.

Features

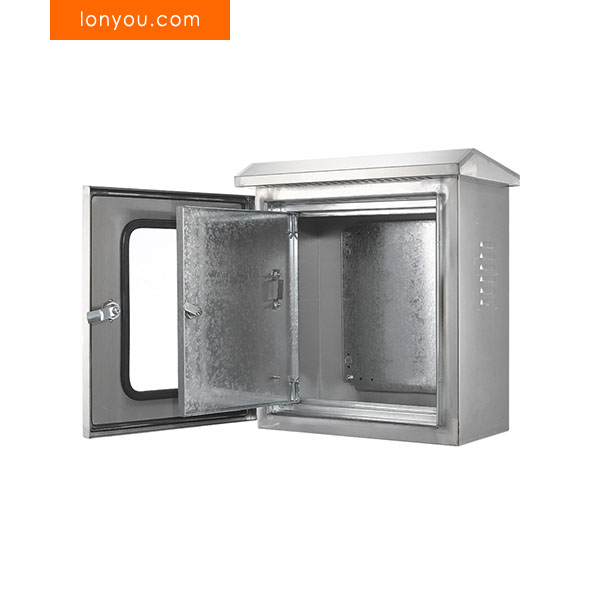

  • Dual Door System: Features a robust outer rainproof door and a separate inner door for enhanced security and protection.

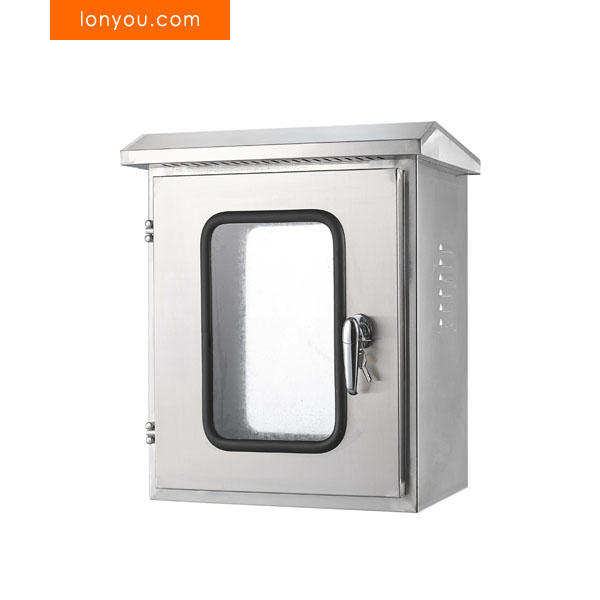

  • Weatherproof Outer Door: Constructed from durable materials (steel, stainless steel, or polycarbonate) with weatherproof seals and gaskets to prevent water and dust ingress.
  • Inner Door Functionality: Provides an additional barrier against moisture, dust, and unauthorized access to internal components.
  • Improved Security: The inner door often includes separate locking mechanisms for increased security.
  • Enhanced Organization: The space between the inner and outer doors can be used for mounting additional components or documentation.
  • Durable and Corrosion-Resistant Materials: Built to withstand outdoor elements, including rain, snow, UV radiation, and temperature fluctuations.
  • Various Sizes and Configurations: Available in a range of dimensions to accommodate different equipment layouts.
  • Secure Latching Mechanisms: Outer door features robust latches, and the inner door typically has its own latch or locking system.
  • Mounting Options: Designed for easy wall mounting, pole mounting, or floor standing (depending on the model).

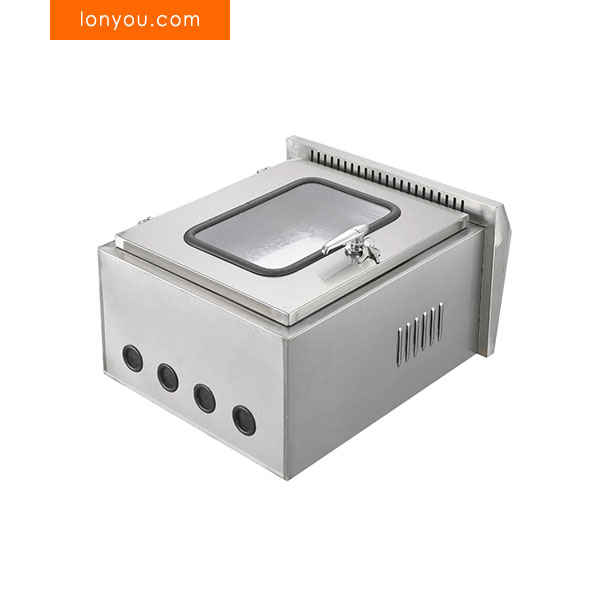

  • Cable Entry Provisions: Equipped with knockouts or gland plates for secure and weatherproof cable entry.
  • Ventilation Options (Optional): Some models may include ventilation features or provisions to manage internal temperature.
  • Grounding Provisions: Integrated grounding studs or points for safe electrical connections.
  • Compliance with Standards: Often meets IP and NEMA ratings for environmental protection.

Technical Data

  • Material (Outer Enclosure): Typically Steel (powder-coated), Stainless Steel (304 or 316), or Polycarbonate
  • Material (Inner Door): Typically Steel (powder-coated) or Stainless Steel
  • IP Rating: Ranges from IP65 to IP68 (indicating protection against dust and varying degrees of water ingress)
  • NEMA Rating (if applicable): Ranges based on the level of protection offered against environmental hazards
  • External Dimensions (HxWxD): Varies widely depending on the model (examples: 400x300x200mm, 800x600x300mm)
  • Internal Dimensions (HxWxD - Main Compartment): Varies depending on the model
  • Space Between Doors: Typically ranges from 25mm to 50mm
  • Weight: Varies depending on size and materials
  • Operating Temperature Range: Typically -40°C to +80°C (specific range depends on materials and seals)
  • Impact Resistance (if applicable): Rated by IK code (e.g., IK10)
  • Gasket Material (Outer Door): Typically neoprene, silicone, or polyurethane
  • Gasket Material (Inner Door): Typically foam or rubber
  • Locking Mechanism (Outer Door): Quarter-turn latches, keyed locks, hasps for padlocks
  • Locking Mechanism (Inner Door): Quarter-turn latches, keyed locks
  • Mounting Options: Wall mount, pole mount, floor mount (depending on the model)
  • Cable Entry Points: Knockouts or gland plates for cable entry and sealing
  • Finish (for metal enclosures): Powder-coated (various colors), natural stainless steel finish
  • Grounding Points: Integrated grounding studs or terminals

Specifications

Item No. Height
(mm)
Width
(mm)
Depth
(mm)
LYBT252015 250 200 150
LYBT302015 300 200 150
LYBT302520 300 250 200
LYBT403020 400 300 200
LYBT503020 500 300 200
LYBT503030 500 300 300
LYBT504020 500 400 200
LYBT505025 500 500 250
LYBT604020 600 400 200
LYBT604025 600 400 250
LYBT605020 600 500 200
LYBT605025 600 500 250
LYBT705020 700 500 200
LYBT705025 700 500 250
LYBT806025 800 600 250
LYBT806030 800 600 300
LYBT1006030 1000 600 300
LYBT1008030 1000 800 300
LYBT12010030 1200 1000 300
LYBT12010040 1200 1000 400

Please contact sales for customizing any other sizes.
