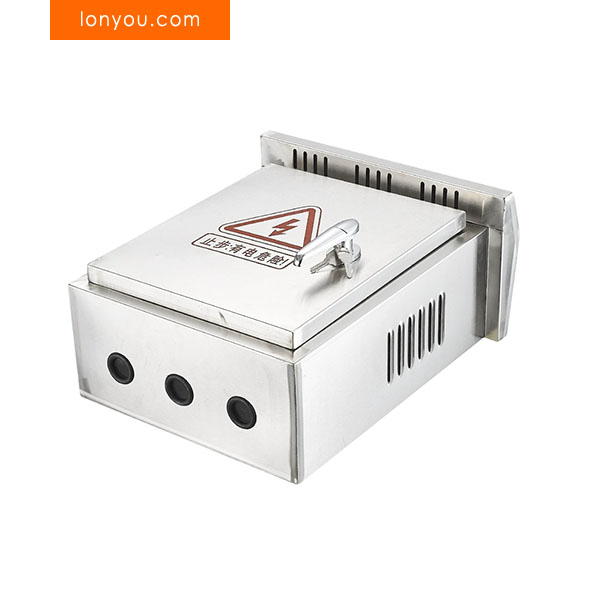

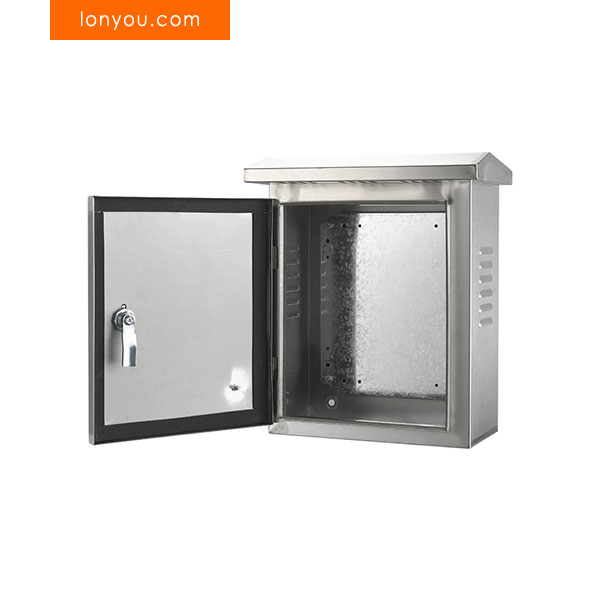

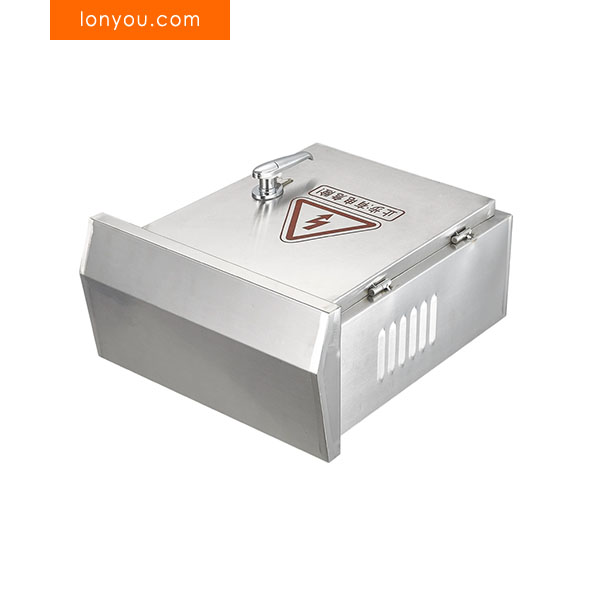

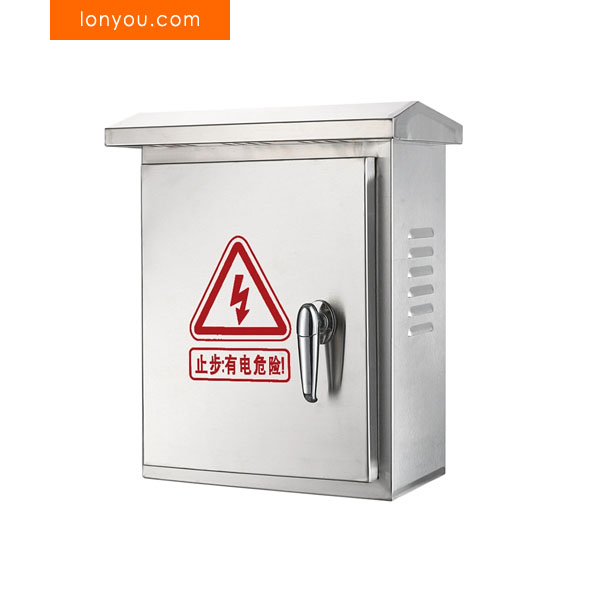

Outdoor Rainproof Electrical Enclosures
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 EA/Month

Description
Reviews
Outdoor Rainproof Electrical Enclosures are engineered to provide reliable protection for electrical and electronic components installed in outdoor and wet locations. Constructed from durable, weather-resistant materials, these enclosures are designed to safeguard against rain, snow, dust, splashing water, and other environmental elements. They are essential for ensuring the safe and continuous operation of control systems, power distribution, lighting controls, and various other electrical installations exposed to the elements.
Features
- Constructed from robust materials such as powder-coated steel, stainless steel (various grades), or UV-stabilized polycarbonate.
- Equipped with effective sealing mechanisms, including gaskets and tight-fitting doors or covers, to prevent water and dust ingress.
- Designed to withstand a wide range of outdoor conditions, including temperature fluctuations, humidity, and UV exposure.
- Available in a variety of sizes, depths, and mounting configurations (wall-mount, pole-mount, floor-standing) to suit diverse application needs.
- Feature secure locking or latching mechanisms to protect internal components from unauthorized access and environmental elements.
- May include internal mounting panels or DIN rail provisions for easy equipment installation.
- Often incorporate features for cable entry and management, such as gland plates or knockout provisions.
- Some models offer ventilation options (with appropriate filters or louvers) to manage internal temperature and prevent condensation.
- Compliance with relevant industry standards for environmental protection (e.g., IP ratings) is a key design consideration.
- Suitable for a broad spectrum of outdoor applications across industrial, commercial, and public infrastructure.
Technical Data
- Enclosure Material: Powder-Coated Steel, Stainless Steel (e.g., 304, 316), Polycarbonate
- IP Rating: Typically ranges from IP65 to IP67 (indicating protection against dust and water jets or temporary immersion)
- NEMA Rating (if applicable): Corresponds to specific levels of protection against environmental hazards
- External Dimensions (Height x Width x Depth): Varies significantly by model (e.g., 300mm x 200mm x 150mm, 800mm x 600mm x 300mm)
- Internal Dimensions (Height x Width x Depth): Will be slightly smaller than external dimensions
- Weight: Varies depending on size and material
- Operating Temperature Range: Common ranges include -25°C to +60°C or -40°C to +70°C (refer to specific product specifications)
- Impact Resistance (IK Rating, if applicable): May range from IK08 to IK10, indicating resistance to mechanical impacts
- Gasket Material: Commonly Neoprene, Silicone, or EPDM
- Locking Mechanism Type: Quarter-turn latches, padlocking hasps, keyed locks
- Mounting Style: Wall Mount, Pole Mount, Surface Mount, Floor Standing
- Cable Entry Provisions: Knockouts, gland plates (number and size vary by model)
- Finish (for metal enclosures): Powder-coated in standard colors (e.g., RAL 7035 grey), brushed stainless steel
- Load Capacity (if applicable): Maximum weight the enclosure can safely support
Specifications
Item No. |
Height (mm) |
Width (mm) |
Depth (mm) |
LYBW252015 | 250 | 200 | 150 |
LYBW302015 | 300 | 200 | 150 |
LYBW302520 | 300 | 250 | 200 |
LYBW403020 | 400 | 300 | 200 |
LYBW503020 | 500 | 300 | 200 |
LYBW503030 | 500 | 300 | 300 |
LYBW504020 | 500 | 400 | 200 |
LYBW505025 | 500 | 500 | 250 |
LYBW604020 | 600 | 400 | 200 |
LYBW604025 | 600 | 400 | 250 |
LYBW605020 | 600 | 500 | 200 |
LYBW605025 | 600 | 500 | 250 |
LYBW705020 | 700 | 500 | 200 |
LYBW705025 | 700 | 500 | 250 |
LYBW806025 | 800 | 600 | 250 |
LYBW806030 | 800 | 600 | 300 |
LYBW1006030 | 1000 | 600 | 300 |
LYBW1008030 | 1000 | 800 | 300 |
LYBW12010030 | 1200 | 1000 | 300 |
LYBW12010040 | 1200 | 1000 | 400 |
Please contact sales for customizing any other sizes.
