Stainless Steel Hose Clamps
Mini Hose Clamps
Mini Hose Clamps
Mini Hose Clamps
Mini Hose Clamps
Mini Hose Clamps

Mini Hose Clamps

Designed for Secure Fastening in Tight and Confined Spaces
Corrosion Resistant, Rust-proof & Long-Lasting
Min. Order: 1,000 PCS
Reference FOB Price: 0.1~1.0 USD/PCS
Basic Info & Terms

Place of Origin:  China

Brand Name:  LONYOU

Payment Terms: T/T, L/C

Certification:   CE RoHS

Supply Ability: 100,000 PCS/Month

Description

Reviews

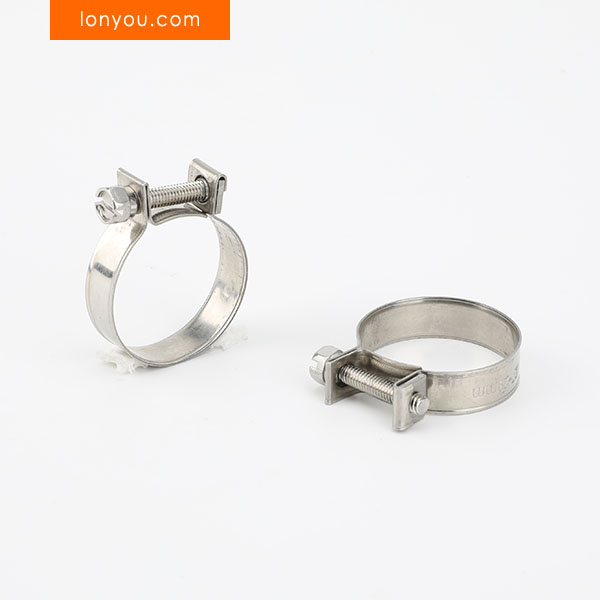

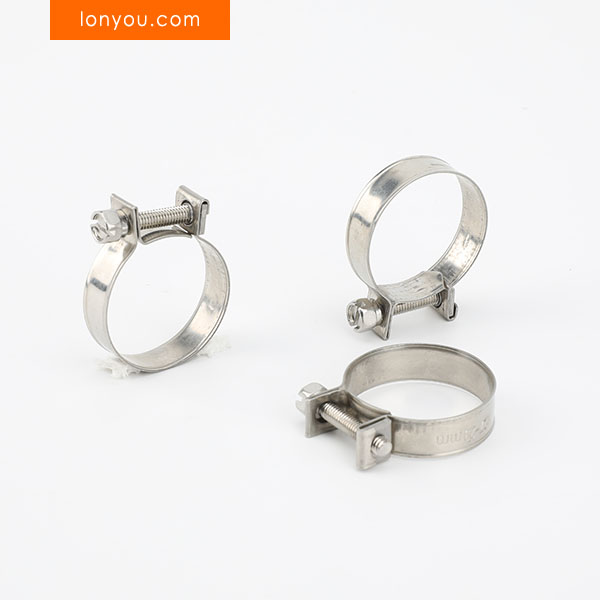

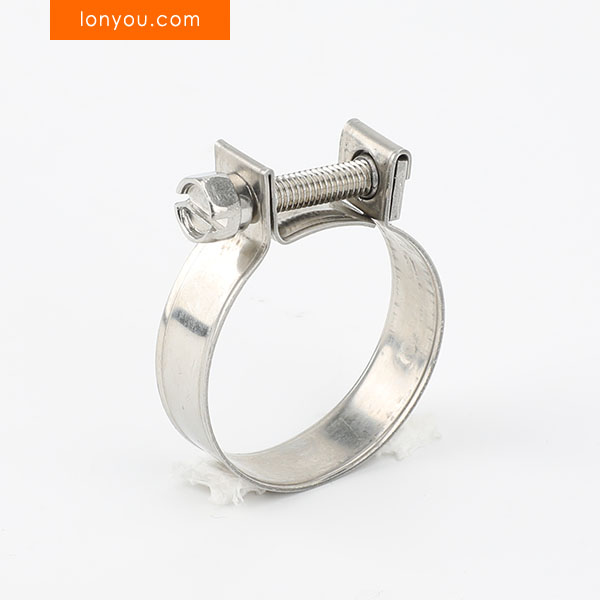

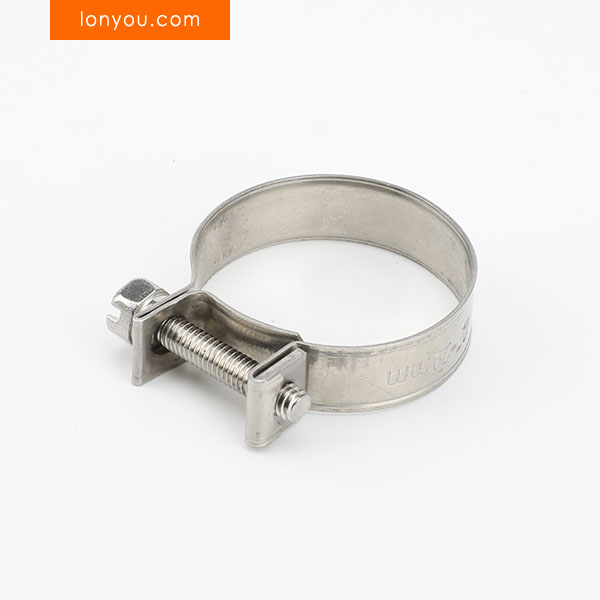

Mini Hose Clamps are compact and lightweight fastening devices designed for securing small diameter hoses, tubes, and pipes in tight spaces. These clamps provide a reliable and adjustable clamping force for applications such as fuel lines, vacuum lines, air lines, and other low-pressure systems. Their small size and ease of installation make them ideal for applications where space is limited and a secure, leak-proof seal is required on smaller connections.

Features

  • Compact and lightweight design for use in confined areas.
  • Provides a secure and adjustable clamping force for small diameter hoses.
  • Easy to install and tighten using common tools like screwdrivers or nut drivers.
  • Available in various materials such as carbon steel (often zinc-plated) and stainless steel, offering different levels of corrosion resistance.
  • Features a narrow band width suitable for small hose diameters.
  • Often utilizes a worm gear mechanism for precise adjustment.
  • Can be used in a wide range of low-pressure applications.
  • Offers a cost-effective fastening solution for small hose connections.
  • Some designs may include a smooth inner band to minimize hose damage.
  • Available in various clamping ranges to fit different small hose sizes.

Technical Data

  • Material Options: Carbon Steel (Zinc-Plated), Stainless Steel (various grades like 201, 304)
  • Band Width: 9mm
  • Clamping Diameter Range: Refer to specific product sizing charts
  • Screw Type: Typically slotted or Phillips head
  • Screw Material: Usually steel (matching the band material or a compatible grade)
  • Maximum Torque: Relatively low compared to larger hose clamps (refer to product specifications, often measured in inch-pounds or Newton-meters)
  • Corrosion Resistance: Zinc-Plated Carbon Steel: Offers moderate corrosion resistance; Stainless Steel: Offers good to excellent corrosion resistance (grade dependent).
  • Operating Temperature Range: Dependent on the material used (e.g., Stainless Steel generally has a wider range). Refer to specific material properties.
  • Application Tools: Screwdriver (slotted or Phillips), Nut Driver (size dependent on screw head)
  • Typical Applications: Fuel lines, vacuum lines, air lines, small coolant hoses, appliance hoses, medical tubing, etc.
  • Packaging: Typically sold in bags or boxes of varying quantities.

Specifications

Code Diameter
(mm)
Width
(mm)
Thickness
(mm)
Material
MH07 7-9 9.0 0.6 W1/W4
MH08 8-10 9.0 0.6 W1/W4
MH09 9-11 9.0 0.6 W1/W4
MH10 10-12 9.0 0.6 W1/W4
MH11 11-13 9.0 0.6 W1/W4
MH12 12-14 9.0 0.6 W1/W4
MH13 13-15 9.0 0.6 W1/W4
MH14 14-16 9.0 0.6 W1/W4
MH15 15-17 9.0 0.6 W1/W4
MH16 16-18 9.0 0.6 W1/W4
MH17 17-19 9.0 0.6 W1/W4
MH18 18-20 9.0 0.6 W1/W4
MH19 19-21 9.0 0.6 W1/W4
MH20 20-22 9.0 0.6 W1/W4
MH21 21-23 9.0 0.6 W1/W4
MH22 22-24 9.0 0.6 W1/W4
MH23 23-25 9.0 0.6 W1/W4
MH24 24-26 9.0 0.6 W1/W4
MH25 25-27 9.0 0.6 W1/W4
MH26 26-28 9.0 0.6 W1/W4
MH27 27-29 9.0 0.6 W1/W4
MH28 28-30 9.0 0.6 W1/W4
MH29 29-31 9.0 0.6 W1/W4
MH30 30-32 9.0 0.6 W1/W4
MH31 31-33 9.0 0.6 W1/W4
MH32 32-24 9.0 0.6 W1/W4

Please contact sales for customizing any other special sizes.
