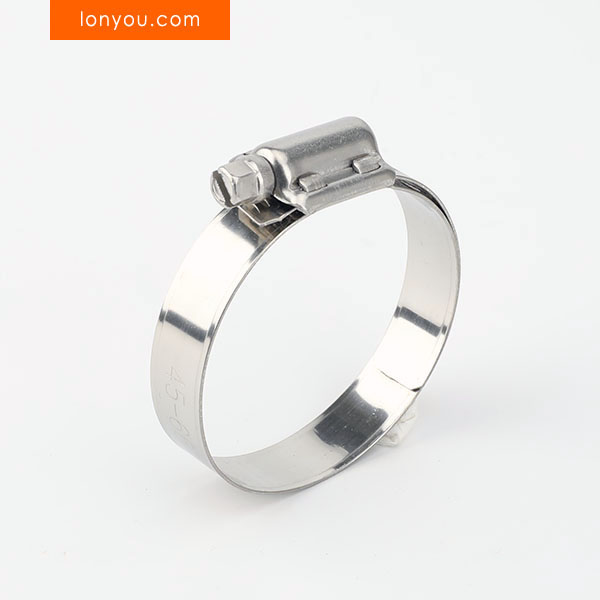

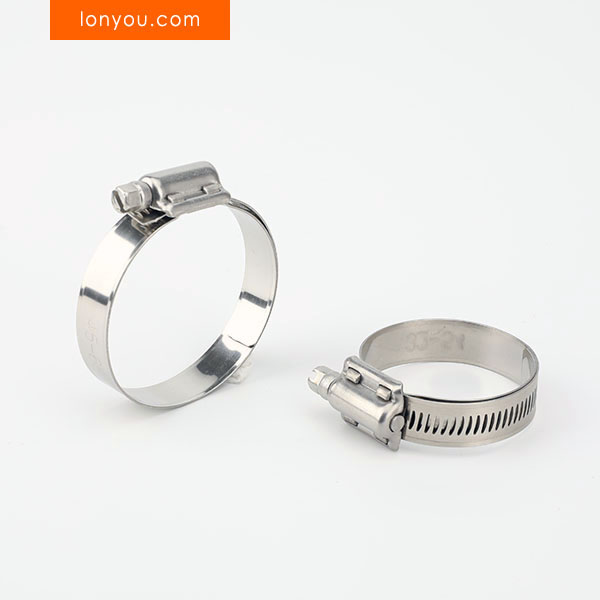

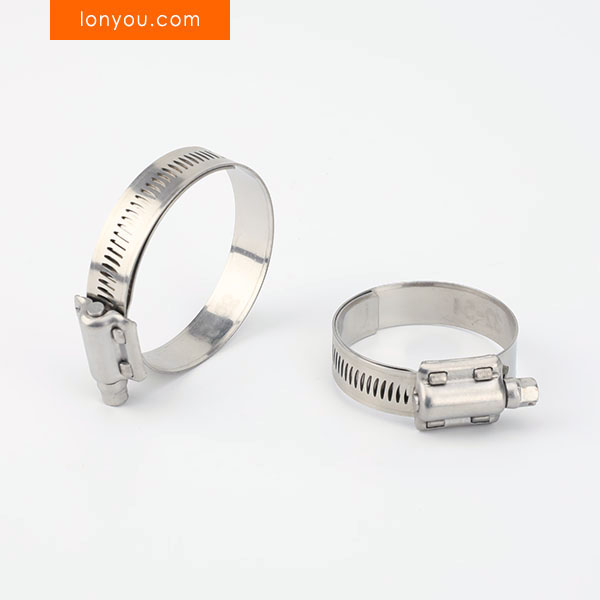

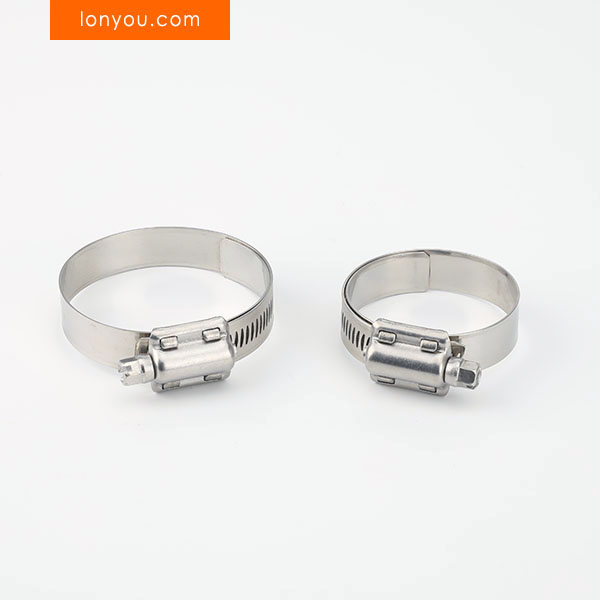

High Torque Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews
High Torque American Type Hose Clamps are engineered for applications demanding superior clamping force and reliable sealing. Building upon the standard American worm-drive design, these clamps incorporate enhanced features and robust construction to provide significantly increased torque capability. This ensures a tighter, more secure grip on hoses and pipes, particularly in high-pressure, high-vibration, or temperature-fluctuating environments. Ideal for automotive, industrial, heavy equipment, and marine applications where a strong and leak-proof seal is critical.
Features
- Enhanced worm drive mechanism designed for increased torque capacity.
- Wider band design to distribute clamping force more evenly.
- Thicker band material for increased strength and durability.
- Deeper or more aggressive screw threads for improved engagement and tightening.
- May feature a reinforced or buttress screw design to withstand higher torque.
- Often constructed from high-grade stainless steel for excellent corrosion resistance.
- Smooth band undersides to minimize hose damage while maximizing grip.
- Available in a range of sizes to accommodate various hose and pipe diameters.
- Easy to install using standard screwdriver or nut driver tools.
- Provides a reliable seal under demanding operating conditions.
Technical Data
- Material Options: Typically Stainless Steel (various grades like 304, 316), Carbon Steel (zinc-plated or other coatings)
- Band Width: Commonly available in widths such as 12.7mm (1/2"), 14.2mm (9/16"), 15.8mm (5/8")
- Band Thickness: Typically ranging from 0.7mm to 1.0mm
- Screw Type: Standard slotted, Phillips, or hex head; may feature reinforced or buttress threads
- Maximum Recommended Torque: Varies significantly by size and design (examples: 8 Nm, 12 Nm, 15 Nm - refer to specific product specifications)
- Clamping Diameter Range: Specified for each clamp size (e.g., 25mm - 51mm, 51mm - 76mm)
- Corrosion Resistance: Stainless Steel: Excellent resistance to rust, oxidation, and many chemicals (grade dependent); Carbon Steel (coated): Offers moderate corrosion resistance depending on the coating.
- Operating Temperature Range: Dependent on the material used (e.g., Stainless Steel can withstand a wider range). Refer to specific material properties.
- Breakaway Torque: The torque at which the clamp may fail (significantly higher than recommended torque).
- Application Torque: The recommended torque for achieving a secure and leak-proof seal without damaging the hose or clamp.
- Standards Compliance: Meet SAE J536 or other relevant industry standards.
Specifications
Code |
Diameter (mm) |
Band Width (mm) |
Band Thickness (mm) |
AD11 | 11-25 | 12.7/14.2/15.8 | 0.7 |
AD14 | 14-27 | 12.7/14.2/15.8 | 0.7 |
AD18 | 18-32 | 12.7/14.2/15.8 | 0.7 |
AD19 | 19-44 | 12.7/14.2/15.8 | 0.7 |
AD35 | 35-51 | 12.7/14.2/15.8 | 0.7 |
AD38 | 38-57 | 12.7/14.2/15.8 | 0.7 |
AD40 | 40-64 | 12.7/14.2/15.8 | 0.7 |
AD46 | 46-70 | 12.7/14.2/15.8 | 0.7 |
AD52 | 52-76 | 12.7/14.2/15.8 | 0.7 |
AD59 | 59-82 | 12.7/14.2/15.8 | 0.7 |
AD65 | 65-89 | 12.7/14.2/15.8 | 0.7 |
AD76 | 76-92 | 12.7/14.2/15.8 | 0.7 |
AD78 | 78-101 | 12.7/14.2/15.8 | 0.7 |
AD98 | 98-114 | 12.7/14.2/15.8 | 0.7 |
AD105 | 105-127 | 12.7/14.2/15.8 | 0.7 |
AD120 | 120-146 | 12.7/14.2/15.8 | 0.7 |
AD130 | 130-152 | 12.7/14.2/15.8 | 0.7 |
AD145 | 145-178 | 12.7/14.2/15.8 | 0.7 |
AD180 | 180-203 | 12.7/14.2/15.8 | 0.7 |
AD235 | 235-254 | 12.7/14.2/15.8 | 0.7 |
AD280 | 280-305 | 12.7/14.2/15.8 | 0.7 |
For further information about other sizes, please contact sales.
