Heavy Duty Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews
Heavy Duty Hose Clamps, available in both one-bolt and double-bolt configurations, are engineered for high-pressure and demanding applications where a secure and robust seal is critical. Constructed from durable materials, these clamps provide superior clamping force and resistance to vibration, torque, and extreme conditions. Ideal for use in industrial, automotive, agricultural, and marine environments, they ensure reliable connections for thick-walled hoses, reinforced pipes, and other demanding applications where standard hose clamps may not suffice. The one-bolt design offers a strong and easily installed solution, while the double-bolt design provides even greater clamping force and enhanced security for the most challenging applications.
Features
- Heavy-Duty Construction: Manufactured from high-strength materials like carbon steel or stainless steel for exceptional durability.
- High Clamping Force: Designed to exert significant pressure for a tight and leak-proof seal on robust hoses.
- Resistance to Vibration and Torque: Maintains clamping force even under demanding operational conditions.
- One-Bolt Design: Provides a strong and reliable seal with relatively easy installation.
- Double-Bolt Design: Offers increased clamping force and enhanced security for high-pressure or critical applications.
- Wide Range of Sizes: Available to accommodate various diameters of heavy-duty hoses and pipes.
- Corrosion Resistance Options: Offered in materials like stainless steel for superior resistance to rust and chemical degradation.
- Robust Band Design: Features a wider and thicker band compared to standard hose clamps for increased strength.
- Reinforced Saddle/Bridge: Distributes clamping force evenly and protects the hose from damage.
- Suitable for Demanding Applications: Ideal for industrial machinery, heavy equipment, irrigation systems, and marine exhaust systems.
Technical Data
- Material Options: Carbon Steel (zinc-plated), Stainless Steel (various grades like 304, 316)
- Band Width: Typically ranges from 18mm to 30mm (or more for specialized clamps)
- Band Thickness: Typically ranges from 0.8mm to 1.5mm (or more)
- Screw Material: High-strength steel (grade specific to the clamp)
- Operating Temperature Range: Dependent on the material (e.g., Carbon Steel: -30°C to +120°C, Stainless Steel: -50°C to +150°C or higher)
- Corrosion Resistance: Varies by material (zinc-plated offers moderate, stainless steel offers excellent)
- Application Torque: Recommended tightening torque will vary by size and application (refer to manufacturer specifications)

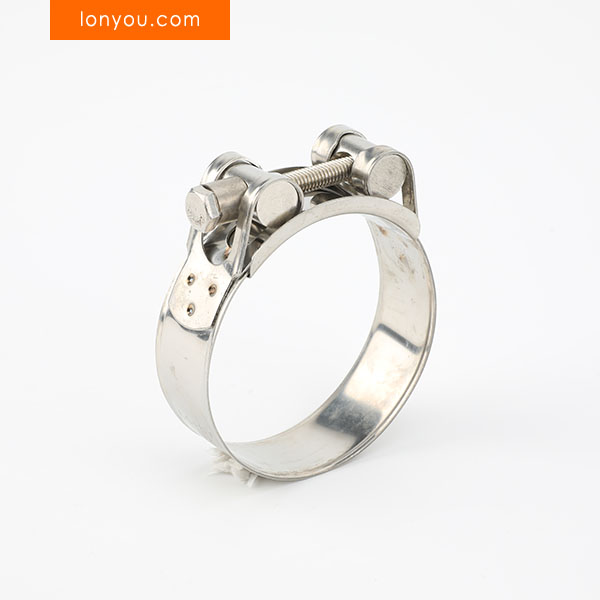

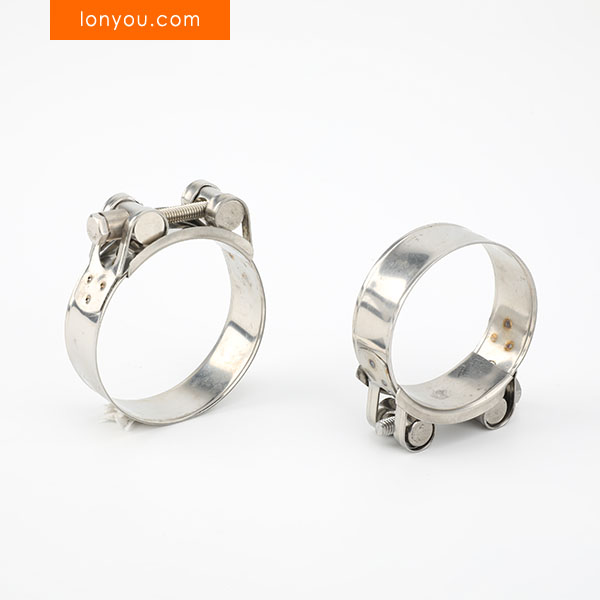

One-Bolt Heavy Duty Hose Clamps
- Bolt Quantity: One high-strength bolt
- Typical Size Range (Diameter): Varies widely (e.g., 20mm to 200mm or more)
- Clamping Force: High, suitable for many heavy-duty applications

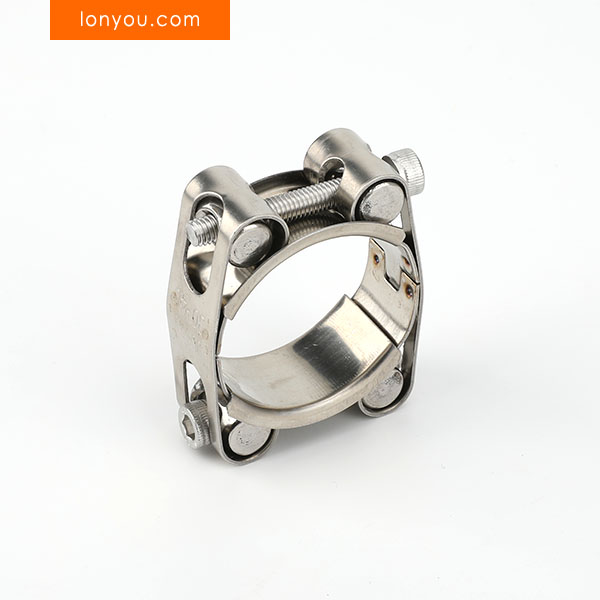

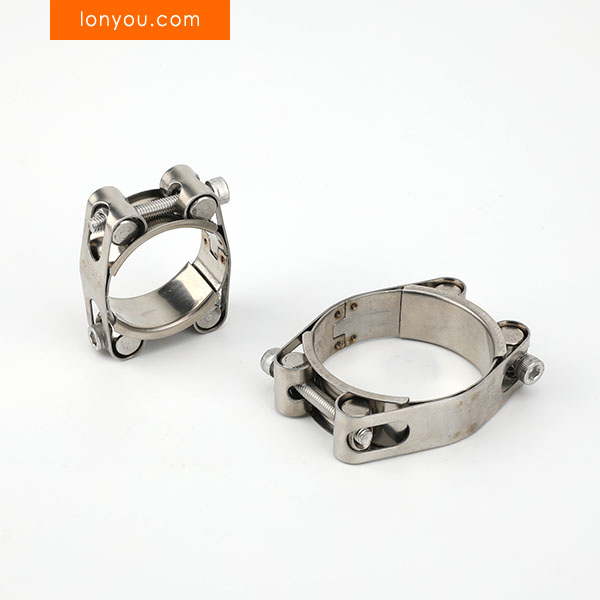

Double-Bolt Heavy Duty Hose Clamps
- Bolt Quantity: Two high-strength bolts
- Typical Size Range (Diameter): Varies widely (often used for larger diameters and higher pressures)
- Clamping Force: Very High, providing enhanced security for critical and high-pressure applications
- Saddle/Bridge Design: Often features a wider or reinforced saddle to accommodate the dual bolts and distribute force evenly.
Specifications for One-Bolt Clamps
Code |
Diameter (mm) |
Bolt Size (mm) |
W1-T X W | W2-T X W |
HD017 | 17-19 | M5*40 | 0.6*18 | 0.6*18 |
HD020 | 20-22 | M5*40 | 0.6*18 | 0.6*18 |
HD023 | 23-25 | M5*40 | 0.6*18 | 0.6*18 |
HD026 | 26-28 | M5*40 | 0.6*18 | 0.6*18 |
HD029 | 29-31 | M6*50 | 0.8*20 | 0.6*20 |
HD032 | 32-35 | M6*50 | 0.8*20 | 0.6*20 |
HD036 | 36-39 | M6*50 | 0.8*20 | 0.6*20 |
HD040 | 40-43 | M6*50 | 0.8*20 | 0.6*20 |
HD044 | 44-47 | M6*60 | 1.2*22 | 0.8*22 |
HD048 | 48-51 | M6*60 | 1.2*22 | 0.8*22 |
HD052 | 52-55 | M6*60 | 1.2*22 | 0.8*22 |
HD056 | 56-59 | M6*60 | 1.2*22 | 0.8*22 |
HD060 | 60-63 | M6*60 | 1.2*22 | 0.8*22 |
HD064 | 64-67 | M6*60 | 1.2*22 | 0.8*22 |
HD068 | 68-73 | M8*70 | 1.5*24 | 0.8*24 |
HD074 | 74-79 | M8*70 | 1.5*24 | 0.8*24 |
HD080 | 80-85 | M8*70 | 1.5*24 | 0.8*24 |
HD086 | 86-91 | M8*70 | 1.5*24 | 0.8*24 |
HD092 | 92-97 | M8*70 | 1.5*24 | 0.8*24 |
HD098 | 98-103 | M8*80 | 1.5*24 | 0.8*24 |
HD104 | 104-112 | M8*80 | 1.5*24 | 0.8*24 |
HD113 | 113-121 | M8*80 | 1.5*24 | 0.8*24 |
HD122 | 120-130 | M8*80 | 1.5*24 | 0.8*24 |
HD131 | 131-139 | M10*85 | 1.7*26 | 1.0*26 |
HD140 | 140-148 | M10*85 | 1.7*26 | 1.0*26 |
HD149 | 149-161 | M10*85 | 1.7*26 | 1.0*26 |
HD162 | 162-174 | M10*85 | 1.7*26 | 1.0*26 |
HD175 | 175-187 | M10*100 | 1.7*26 | 1.0*26 |
HD188 | 188-200 | M10*100 | 1.7*26 | 1.0*26 |
HD201 | 201-213 | M10*100 | 1.7*26 | 1.0*26 |
HD214 | 214-226 | M10*100 | 1.7*26 | 1.0*26 |
HD227 | 227-239 | M10*100 | 1.7*26 | 1.0*26 |
HD240 | 240-252 | M10*100 | 1.7*26 | 1.0*26 |
To customize any other sizes, please contact sales for further information.
Specifications for Double-Bolt Clamps
Code |
Width (mm) |
Thickness (mm) |
Diameter (mm) |
Bolt Size (mm) |
Material |
PD030 | 20.0 | 1.0 | 30-40 | M6*45 | W1/W4 |
PD035 | 20.0 | 1.0 | 35-45 | M6*45 | W1/W4 |
PD040 | 20.0 | 1.0 | 40-50 | M6*45 | W1/W4 |
PD045 | 20.0 | 1.0 | 45-55 | M6*45 | W1/W4 |
PD050 | 20.0 | 1.0 | 50-60 | M6*45 | W1/W4 |
PD055 | 20.0 | 1.0 | 55-65 | M6*45 | W1/W4 |
PD060 | 20.0 | 1.0 | 60-70 | M6*45 | W1/W4 |
PD065 | 20.0 | 1.0 | 65-75 | M6*45 | W1/W4 |
PD070 | 20.0 | 1.0 | 70-80 | M6*45 | W1/W4 |
PD075 | 20.0 | 1.0 | 75-85 | M6*45 | W1/W4 |
PD080 | 24.0 | 1.0 | 80-90 | M8*60 | W1/W4 |
PD085 | 24.0 | 1.0 | 85-95 | M8*60 | W1/W4 |
PD090 | 24.0 | 1.0 | 90-100 | M8*60 | W1/W4 |
PD095 | 24.0 | 1.0 | 95-105 | M8*60 | W1/W4 |
PD100 | 24.0 | 1.0 | 100-110 | M8*60 | W1/W4 |
PD105 | 24.0 | 1.0 | 105-115 | M8*60 | W1/W4 |
PD110 | 24.0 | 1.0 | 110-120 | M8*60 | W1/W4 |
PD120 | 24.0 | 1.0 | 120-130 | M8*60 | W1/W4 |
PD125 | 24.0 | 1.0 | 125-135 | M8*60 | W1/W4 |
PD130 | 24.0 | 1.0 | 130-140 | M8*60 | W1/W4 |
PD135 | 24.0 | 1.0 | 135-145 | M8*60 | W1/W4 |
PD140 | 24.0 | 1.0 | 140-150 | M8*60 | W1/W4 |
PD145 | 24.0 | 1.0 | 145-155 | M8*60 | W1/W4 |
PD150 | 24.0 | 1.0 | 150-160 | M8*60 | W1/W4 |
PD155 | 24.0 | 1.0 | 155-165 | M8*60 | W1/W4 |
PD160 | 24.0 | 1.0 | 160-170 | M8*60 | W1/W4 |
PD165 | 24.0 | 1.0 | 165-175 | M8*60 | W1/W4 |
PD170 | 24.0 | 1.0 | 170-180 | M8*60 | W1/W4 |
PD180 | 24.0 | 1.0 | 180-190 | M8*60 | W1/W4 |
PD190 | 24.0 | 1.0 | 190-200 | M8*60 | W1/W4 |
PD200 | 24.0 | 1.0 | 200-210 | M8*60 | W1/W4 |
PD210 | 24.0 | 1.0 | 210-220 | M8*60 | W1/W4 |
PD220 | 24.0 | 1.0 | 220-230 | M8*60 | W1/W4 |
PD230 | 24.0 | 1.0 | 230-240 | M8*60 | W1/W4 |
PD240 | 24.0 | 1.0 | 240-250 | M8*60 | W1/W4 |
To customize any other sizes, please contact sales for further information.
