German Type Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews

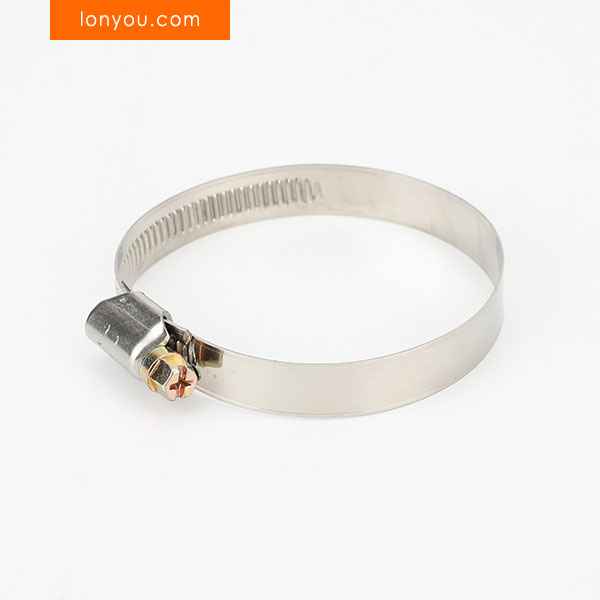

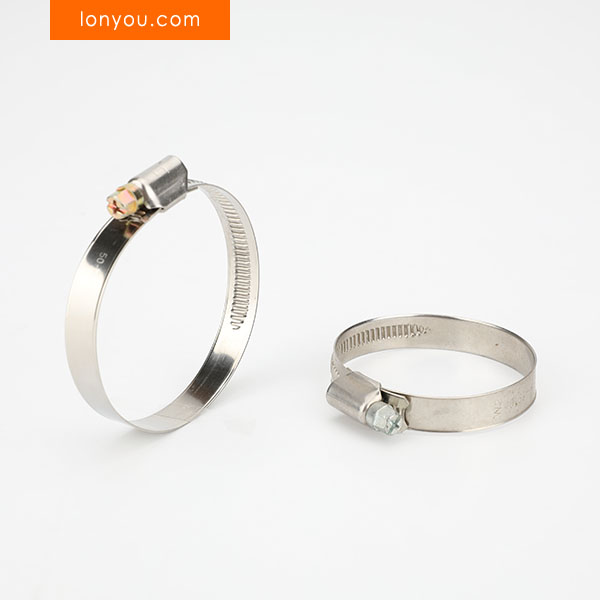

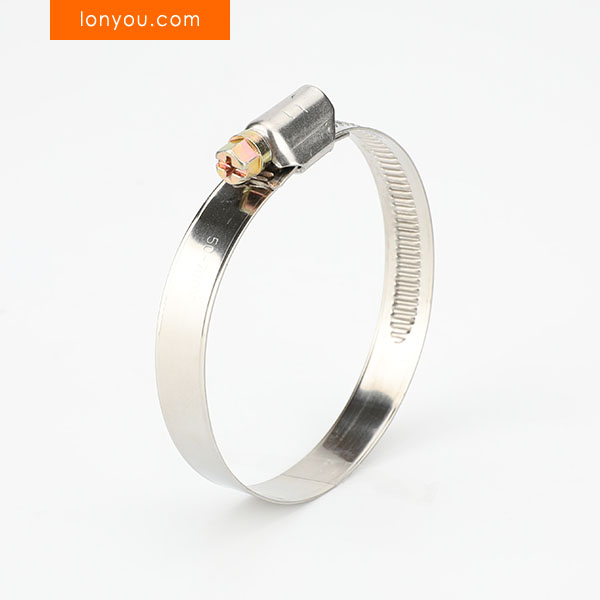

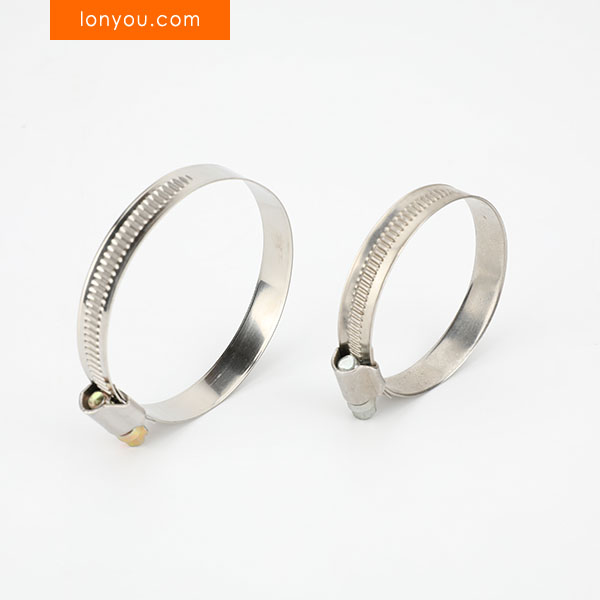

German Type Hose Clamps, also known as solid band or non-perforated hose clamps, are engineered for secure and reliable fastening of hoses and pipes, particularly where hose protection is a concern. Their defining characteristic is a smooth, continuous metal band without perforations, which provides a uniform clamping force and minimizes the risk of damaging softer hose materials. These clamps are widely used in automotive, industrial, and agricultural applications where a tight, leak-proof seal and hose integrity are critical.
Features
- Features a smooth, solid, non-perforated metal band for even clamping pressure.
- Rounded band edges help prevent damage to the hose surface.
- Provides a strong and reliable seal, minimizing the risk of leaks.
- Often constructed from durable materials like galvanized steel or stainless steel for corrosion resistance.
- The housing and screw mechanism are typically robust for high tightening torque.
- Available in various sizes to accommodate a wide range of hose diameters.
- Offers excellent resistance to vibration and mechanical stress.
- Some designs feature a welded or interlocked housing for increased strength.
- Ideal for use with softer hoses, including silicone and rubber.
- Provides a professional and secure fastening solution.
Technical Data
- Material Options: Galvanized Steel (Zinc Plated), Stainless Steel (AISI 430, AISI 304, AISI 316)
- Band Width Options: Typically 9mm or 12mm
- Band Thickness: Varies depending on the width and material (e.g., 0.6mm, 0.7mm)
- Clamping Diameter Range: Varies significantly by size (examples: 8-12mm, 20-32mm, 50-70mm)
- Screw Type: Typically hexagonal head (7mm or 8mm wrench size) or Phillips/slotted combination head
- Maximum Tightening Torque: Varies by size and material (refer to manufacturer specifications)
- Corrosion Resistance: Galvanized Steel: Good resistance to rust in less demanding environments; Stainless Steel (AISI 430): Moderate corrosion resistance; Stainless Steel (AISI 304): Good corrosion resistance for general applications; Stainless Steel (AISI 316): Excellent corrosion resistance, suitable for marine and chemical environments.
- Operating Temperature Range: Dependent on the material used (e.g., Stainless Steel generally has a wider range than galvanized steel). Refer to specific material properties.
- Housing Construction: Typically spot-welded or mechanically interlocked to the band.
- Edge Treatment: Rolled or smooth edges to prevent hose damage.
- Application Torque: Recommended tightening torque for optimal sealing without damaging the hose.
Specifications
Code |
Diameter (mm) |
Width (mm) |
Thickness (mm) |
Material |
GH008 | 8-12 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH010 | 10-16 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH012 | 12-20 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH016 | 16-25 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH020 | 20-32 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH025 | 25-40 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH032 | 32-50 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH040 | 40-60 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH050 | 50-70 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH060 | 60-80 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH070 | 70-90 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH080 | 80-100 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH090 | 90-110 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH100 | 100-120 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH110 | 110-130 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH120 | 120-140 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH130 | 130-150 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH140 | 140-160 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH150 | 150-170 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH160 | 160-180 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH170 | 170-190 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH180 | 180-200 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH190 | 190-210 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH200 | 200-220 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH210 | 210-230 | 9.0/12.0 | 0.7 | W1/W2/W4 |
GH220 | 220-240 | 9.0/12.0 | 0.7 | W1/W2/W4 |
To customize any other sizes, please contact sales for further information.
