Constant Tension Hose Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews

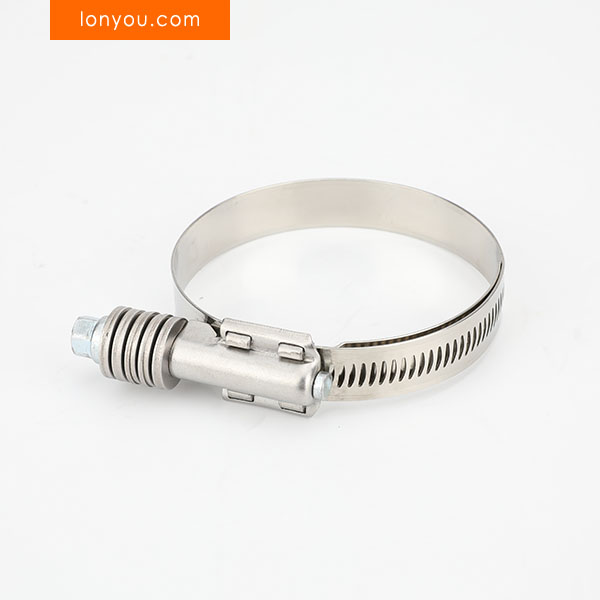

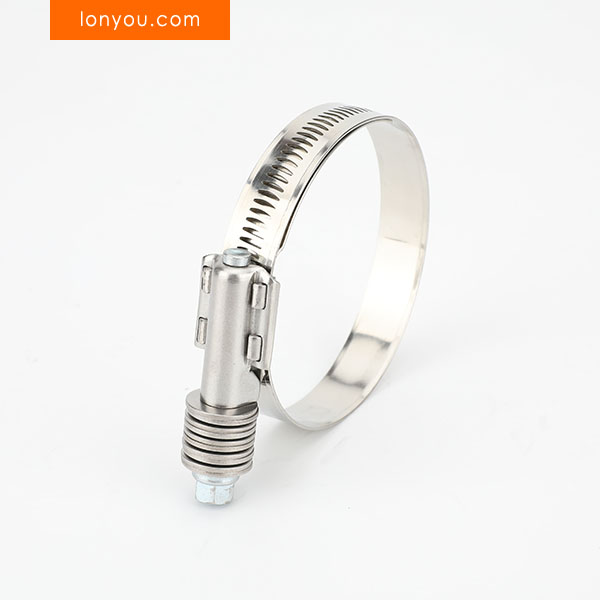

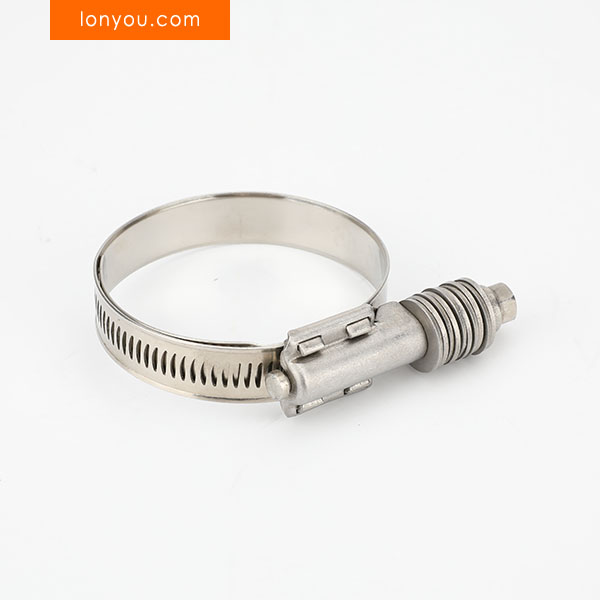

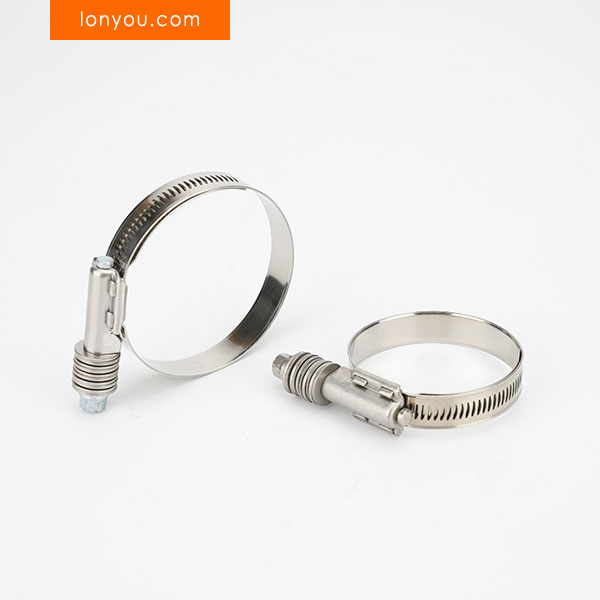

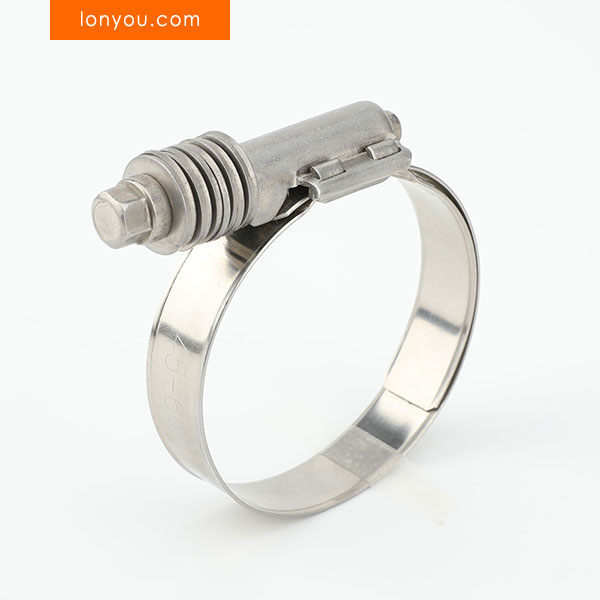

Constant Tension Hose Clamps are engineered to provide a reliable and self-adjusting clamping force, particularly beneficial in applications where temperature fluctuations or hose material compression can lead to leaks with standard clamps. Featuring a spring mechanism integrated into the worm gear design, these clamps automatically expand and contract with changes in hose and fluid temperatures, maintaining a consistent and optimal seal pressure. This ensures a leak-free connection over a wider range of operating conditions, enhancing the longevity and performance of critical systems.
Features
- Incorporates a spring mechanism to automatically adjust clamping force with temperature and pressure variations.
- Maintains a consistent and optimal seal, preventing leaks caused by expansion, contraction, or hose creep.
- Features a standard worm gear drive for easy installation and adjustment.
- Constructed from durable materials, often including stainless steel, for corrosion resistance and longevity.
- Provides superior sealing performance compared to traditional worm drive clamps in dynamic environments.
- Offers increased reliability and reduces the need for retightening.
- Available in various sizes to accommodate a wide range of hose diameters.
- Ideal for automotive cooling systems, turbocharger hoses, silicone hoses, and other applications subject to temperature changes.
- Provides a more secure and leak-proof connection over extended periods.
- Offers resistance to vibration and mechanical stress.
Technical Data
- Material Options: Typically Stainless Steel (various grades like 304, 316), with some components possibly in zinc-plated steel
- Band Width Options: Commonly available in widths such as 9mm, 12mm, 14mm, 16mm
- Clamp Diameter Range: Varies widely depending on the specific clamp size (e.g., 10-16mm, 25-40mm, 50-70mm)
- Spring Material: Typically spring steel or stainless steel
- Maximum Torque Rating: Refer to specific product specifications (indicates the maximum tightening force recommended)
- Constant Tension Range: The range of expansion and contraction the spring mechanism can accommodate while maintaining effective sealing pressure (specific values will vary)
- Corrosion Resistance: Excellent resistance to rust and oxidation, especially for stainless steel versions
- Operating Temperature Range: Dependent on the materials used (e.g., Stainless Steel can typically handle -40°C to +150°C or higher, but the spring material might have limitations)
- Installation Tool: Standard screwdriver or nut driver suitable for the worm gear screw
- Application Examples: Automotive radiator and heater hoses, silicone hoses, turbocharger connections, industrial fluid transfer systems
- Compliance Standards: May adhere to specific automotive or industrial standards
Specifications
Code |
Diameter (mm) |
Width (mm) |
Thickness (mm) |
Material |
CT025 | 25-45 | 15.8 | 0.8 | W1/W2/W4 |
CT032 | 32-54 | 15.8 | 0.8 | W1/W2/W4 |
CT044 | 44-67 | 15.8 | 0.8 | W1/W2/W4 |
CT057 | 57-79 | 15.8 | 0.8 | W1/W2/W4 |
CT070 | 70-92 | 15.8 | 0.8 | W1/W2/W4 |
CT083 | 83-105 | 15.8 | 0.8 | W1/W2/W4 |
CT095 | 95-117 | 15.8 | 0.8 | W1/W2/W4 |
CT108 | 108-130 | 15.8 | 0.8 | W1/W2/W4 |
CT121 | 121-143 | 15.8 | 0.8 | W1/W2/W4 |
CT133 | 133-156 | 15.8 | 0.8 | W1/W2/W4 |
CT146 | 146-168 | 15.8 | 0.8 | W1/W2/W4 |
CT159 | 159-181 | 15.8 | 0.8 | W1/W2/W4 |
CT171 | 171-194 | 15.8 | 0.8 | W1/W2/W4 |
CT184 | 184-206 | 15.8 | 0.8 | W1/W2/W4 |
CT197 | 197-219 | 15.8 | 0.8 | W1/W2/W4 |
CT210 | 210-232 | 15.8 | 0.8 | W1/W2/W4 |
To customize any other sizes, please contact sales for further information.
