Center Punch Clamps
Place of Origin: China
Brand Name: LONYOU
Payment Terms: T/T, L/C
Certification: CE RoHS
Supply Ability: 100,000 PCS/Month

Description
Reviews

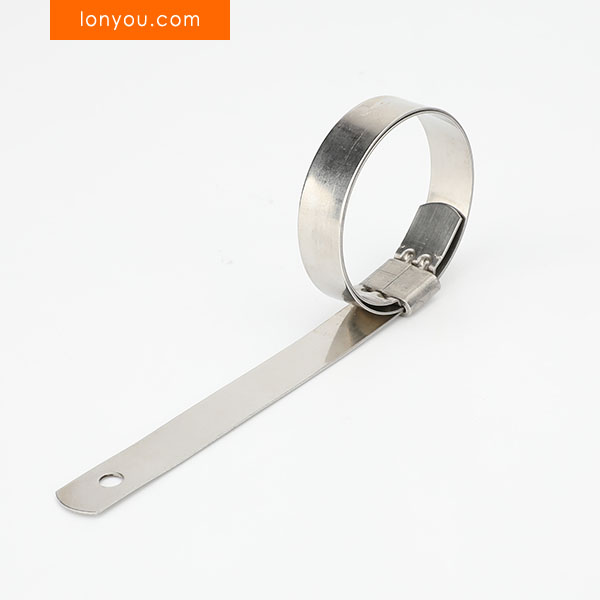

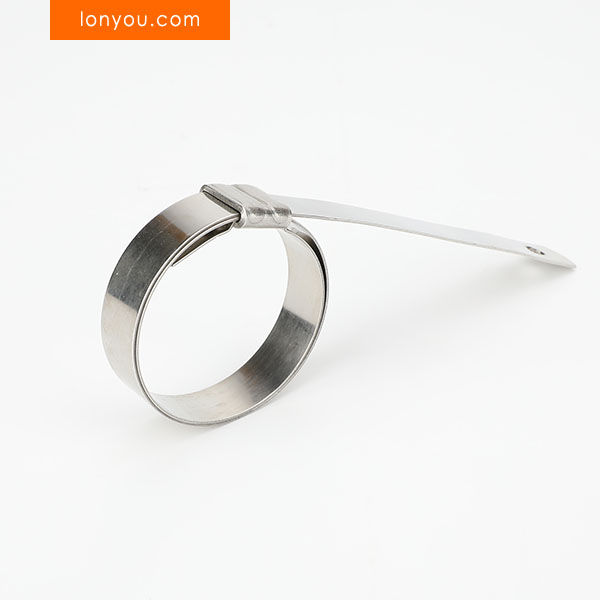

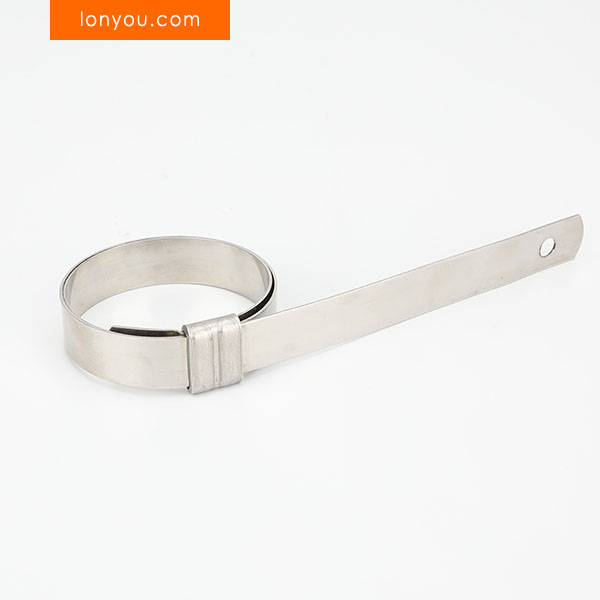

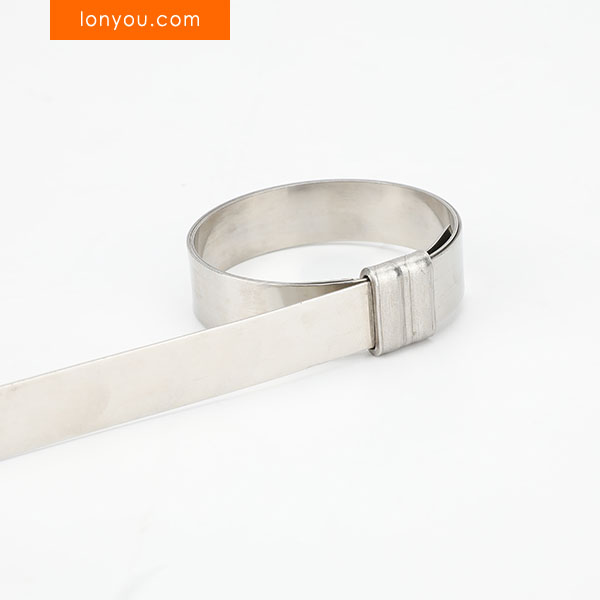

Center Punch Clamps are a robust and tamper-proof solution for securing hoses and tubes, particularly in applications where a permanent and vibration-resistant seal is critical. These clamps utilize a unique center punch locking mechanism, created with a specialized tool, to deform the overlapping bands and create an exceptionally strong and irreversible connection. Their design ensures a tight, 360-degree seal, making them suitable for demanding applications where leakage and loosening are significant concerns.
Features
- Provides a permanent and tamper-proof hose or tube connection.
- Offers excellent resistance to vibration and shock.
- Creates a 360-degree seal for reliable leak prevention.
- Constructed from durable materials, often stainless steel, for corrosion resistance.
- Low profile design minimizes obstruction.
- Can be used in a wide range of applications, including automotive, industrial, and agricultural.
- Offers high clamping force once properly installed.
- Relatively lightweight compared to some other heavy-duty clamping solutions.
- Can be applied quickly with the correct center punch tool.
- Offers a secure fastening solution for critical fluid and air transfer systems.
Technical Data
- Material Options: Typically Stainless Steel (Grades 201, 304, or 316) or Galvanized Steel
- Band Width Options: Commonly available in widths such as 9.5mm (3/8"), 16.0mm (5/8")
- Band Thickness: Varies depending on the material and width (e.g., 0.5mm to 0.8mm)
- Clamp Diameter Range: Designed to fit specific hose outer diameters or ranges, varying widely by clamp size
- Material Tensile Strength: Dependent on the material grade and dimensions
- Corrosion Resistance: Galvanized Steel: Offers moderate corrosion resistance; Stainless Steel: Offers good to excellent corrosion resistance depending on the grade.
- Vibration Resistance: High due to the permanent, mechanically locked connection.
- Temperature Range: Dependent on the material used (e.g., Stainless Steel offers a broader range than galvanized steel). Refer to specific material properties.
- Installation Tool Required: Center Punch Clamp Tool (specific to the clamp type and size)
- Typical Applications: Automotive hoses (fuel, coolant, vacuum lines), industrial hoses, agricultural equipment, hydraulic lines (low pressure), irrigation systems.
- Locking Mechanism: Deformation of the overlapping bands using a center punch tool.
Specifications
Product Code | Width | Thickness | Diameter | ||||
SS201 | GCS | inch | mm | inch | mm | inch | mm |
CPS01 | CPG01 | 3/8 | 9.5 | 0.025 | 0.64 | 13/16 | 20 |
CPS02 | CPG02 | 3/8 | 9.5 | 0.025 | 0.64 | 1-3/8 | 35 |
CPS03 | CPG03 | 5/8 | 16.0 | 0.025 | 0.64 | 1 | 25 |
CPS04 | CPG04 | 5/8 | 16.0 | 0.025 | 0.64 | 1-1/4 | 32 |
CPS05 | CPG05 | 5/8 | 16.0 | 0.025 | 0.64 | 1-1/2 | 38 |
CPS06 | CPG06 | 5/8 | 16.0 | 0.025 | 0.64 | 1-3/4 | 44 |
CPS07 | CPG07 | 5/8 | 16.0 | 0.025 | 0.64 | 2 | 51 |
CPS08 | CPG08 | 5/8 | 16.0 | 0.025 | 0.64 | 2-1/4 | 57 |
CPS09 | CPG09 | 5/8 | 16.0 | 0.025 | 0.64 | 2-1/2 | 64 |
CPS10 | CPG10 | 5/8 | 16.0 | 0.025 | 0.64 | 2-3/4 | 70 |
CPS11 | CPG11 | 5/8 | 16.0 | 0.025 | 0.64 | 3 | 76 |
CPS12 | CPG12 | 5/8 | 16.0 | 0.025 | 0.64 | 3-1/2 | 89 |
CPS13 | CPG13 | 5/8 | 16.0 | 0.025 | 0.64 | 4 | 102 |
CPS14 | CPG14 | 5/8 | 16.0 | 0.025 | 0.64 | 4-1/2 | 114 |
CPS15 | CPG15 | 5/8 | 16.0 | 0.025 | 0.64 | 5 | 127 |
CPS16 | CPG16 | 5/8 | 16.0 | 0.025 | 0.64 | 6 | 152 |
CPS17 | CPG17 | 5/8 | 16.0 | 0.025 | 0.64 | 6-1/2 | 165 |
CPS18 | CPG18 | 5/8 | 16.0 | 0.025 | 0.64 | 7 | 178 |
CPS19 | CPG19 | 5/8 | 16.0 | 0.025 | 0.64 | 8 | 203 |
To customize any other sizes, please contact sales for further information.
