Stainless Steel Hose Clamps
British Type Hose Clamps
British Type Hose Clamps
British Type Hose Clamps
British Type Hose Clamps
British Type Hose Clamps

British Type Hose Clamps

Interlocking Band Design Provides Strong & Secure Connection
9.7 & 11.7mm Wide, Made of SS201 & 304
Min. Order: 1,000 PCS
Reference FOB Price: 0.1~1.0 USD/PCS
Basic Info & Terms

Place of Origin:  China

Brand Name:  LONYOU

Payment Terms: T/T, L/C

Certification:   CE RoHS

Supply Ability: 100,000 PCS/Month

Description

Reviews

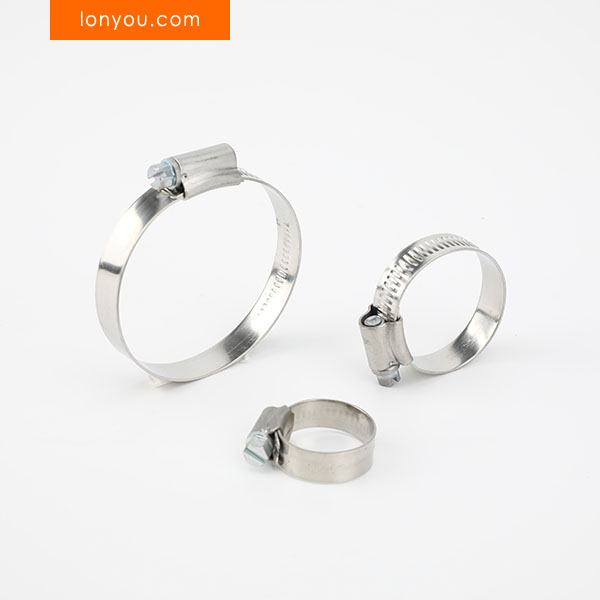

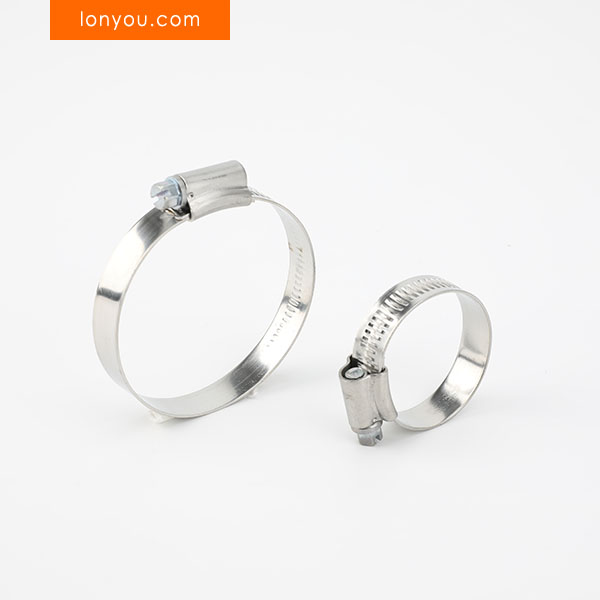

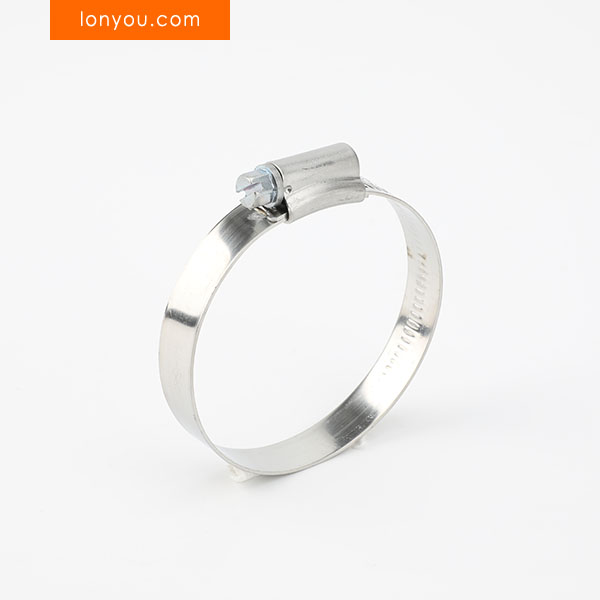

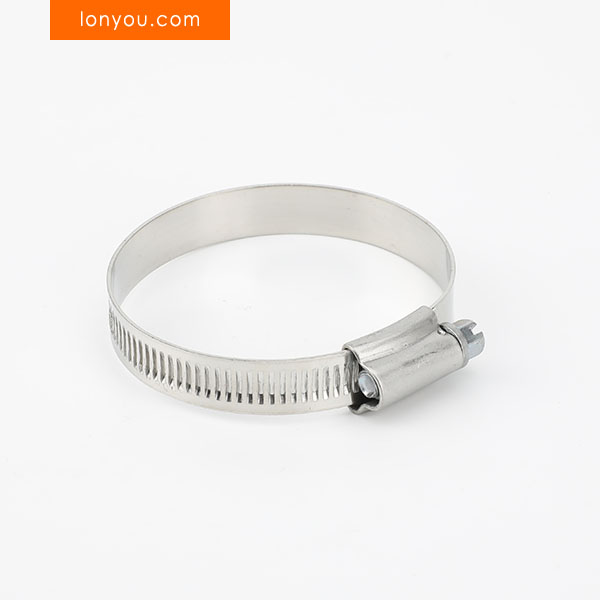

British Type Hose Clamps, also known as Jubilee Clips, are a widely recognized and reliable fastening solution for securing hoses and pipes. Characterized by their perforated band and captive screw housing, these clamps offer a strong and adjustable grip. Their robust design and ease of use have made them a popular choice across various industries, including automotive, plumbing, agriculture, and general engineering, for creating secure and leak-proof connections.

Features

  • Features a perforated band design that interlocks with the screw threads for a secure grip.
  • Equipped with a captive screw housing that remains attached to the band, preventing loss.
  • Allows for easy adjustment of the clamping diameter to fit various hose sizes.
  • Constructed from durable materials such as zinc-plated steel or stainless steel for corrosion resistance.
  • Provides a strong and reliable clamping force to prevent leaks.
  • Simple to install and tighten using a screwdriver or nut driver.
  • Available in a wide range of sizes to accommodate different hose and pipe diameters.
  • Suitable for securing various types of hoses, including rubber, silicone, and plastic.
  • Offers a cost-effective and versatile clamping solution.
  • Commonly used in automotive cooling systems, fuel lines, and other fluid transfer applications.

Technical Data

  • Material Options: Zinc Plated Steel (Carbon Steel), Stainless Steel (typically 201, 304, or 316 grades)
  • Band Width Options: 9.7mm, 11.7mm
  • Band Thickness: Typically ranges from 0.6mm to 1.0mm depending on the width and material
  • Screw Type: Typically a slotted or hexagonal head screw made from steel or stainless steel
  • Clamping Diameter Range: Varies greatly depending on the specific clamp size (ranges can span from a few millimeters to over 100 millimeters)
  • Maximum Torque: Specific to the clamp size and material (refer to manufacturer specifications)
  • Corrosion Resistance: Zinc Plated Steel: Offers moderate corrosion resistance suitable for general applications; Stainless Steel: Offers excellent corrosion resistance for more demanding environments.
  • Operating Temperature Range: Dependent on the material used (e.g., Stainless Steel offers a wider range than zinc-plated steel). Refer to specific material properties.
  • Hose Compatibility: Suitable for a wide variety of hose materials, but consider the band's inner surface for very soft hoses.
  • Standards Compliance (may vary): Some British Type Hose Clamps may adhere to specific industry standards.
  • Packaging: Typically sold individually or in bulk quantities.

Specifications

Code Diameter
(mm)
Width
(mm)
Thickness
(mm)
Material
BH008 8-12 9.7 0.7 W1/W2/W4
BH010 10-16 9.7 0.7 W1/W2/W4
BH013 13-19 9.7 0.7 W1/W2/W4
BH016 16-25 9.7 0.7 W1/W2/W4
BH019 19-29 11.7 0.7 W1/W2/W4
BH022 22-32 11.7 0.7 W1/W2/W4
BH025 25-38 11.7 0.7 W1/W2/W4
BH035 35-44 11.7 0.7 W1/W2/W4
BH036 36-51 11.7 0.7 W1/W2/W4
BH038 38-57 11.7 0.7 W1/W2/W4
BH044 44-64 11.7 0.7 W1/W2/W4
BH051 51-70 11.7 0.7 W1/W2/W4
BH064 64-76 11.7 0.7 W1/W2/W4
BH070 70-89 11.7 0.7 W1/W2/W4
BH076 76-92 11.7 0.7 W1/W2/W4
BH080 80-100 11.7 0.7 W1/W2/W4
BH090 90-110 11.7 0.7 W1/W2/W4
BH100 100-120 11.7 0.7 W1/W2/W4
BH110 110-130 11.7 0.7 W1/W2/W4
BH120 120-140 11.7 0.7 W1/W2/W4
BH130 130-150 11.7 0.7 W1/W2/W4
BH140 140-160 11.7 0.7 W1/W2/W4

To customize any other sizes,please contact sales for further information.
